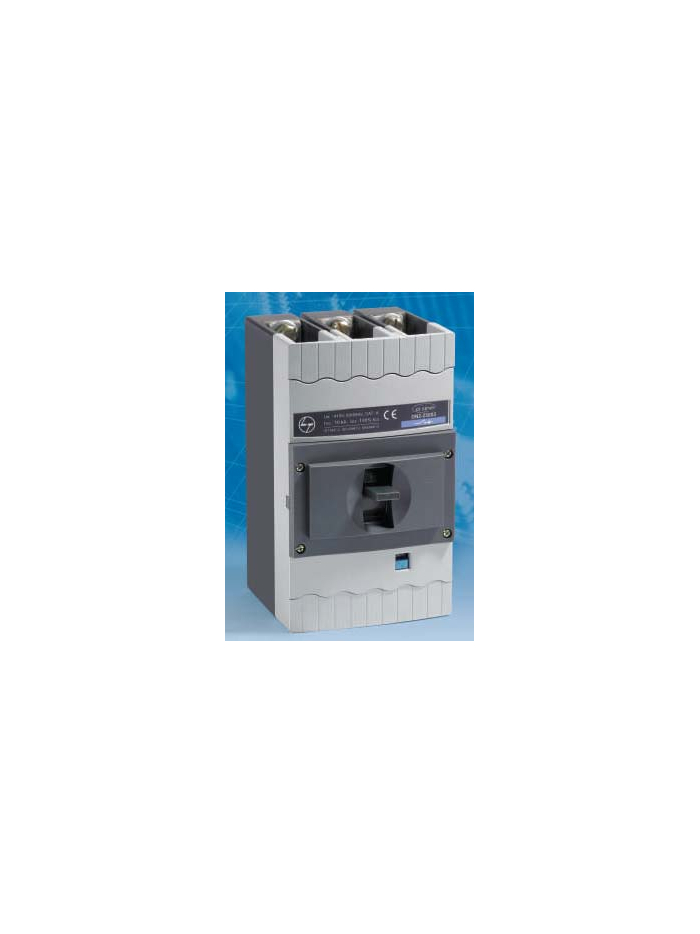

L&T, 4 Pole, 80-100A, DN0-100D MCCB
100A, DNO-100D, THERMAL MAGNETIC RELEASE, D SINE MCCB FOR ISOLATION
- Conforms to IS/IEC 60947-2 & IEC 60947-2
- Choice of 25kA / 36kA / 50kA / 70kA breaking capacities
- Ics = 100% Icu
- Suitable for Isolation
- Adjustable Over Load setting: 0.8 - 1.0 x In
- Adjustable Short Circuit setting: 6 - 10 x In
- Wide Range of snap fit Internal and External Accessories
CM97919OOK2OG
Data sheet
- MCCB APPLICATION
- ISOLATION
- MCCB MODEL
- DN0-100D
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- THERMAL MAGNETIC BASED
- MCCB CURRENT RATING
- 100A
- MCCB/MPCB POLES
- 4 POLE
- MCCB THERMAL/ MAGNETIC RELEASE RANGE
- 80-100A
- MCCB/MCB BREAKING CAPACITY
- 36kA
