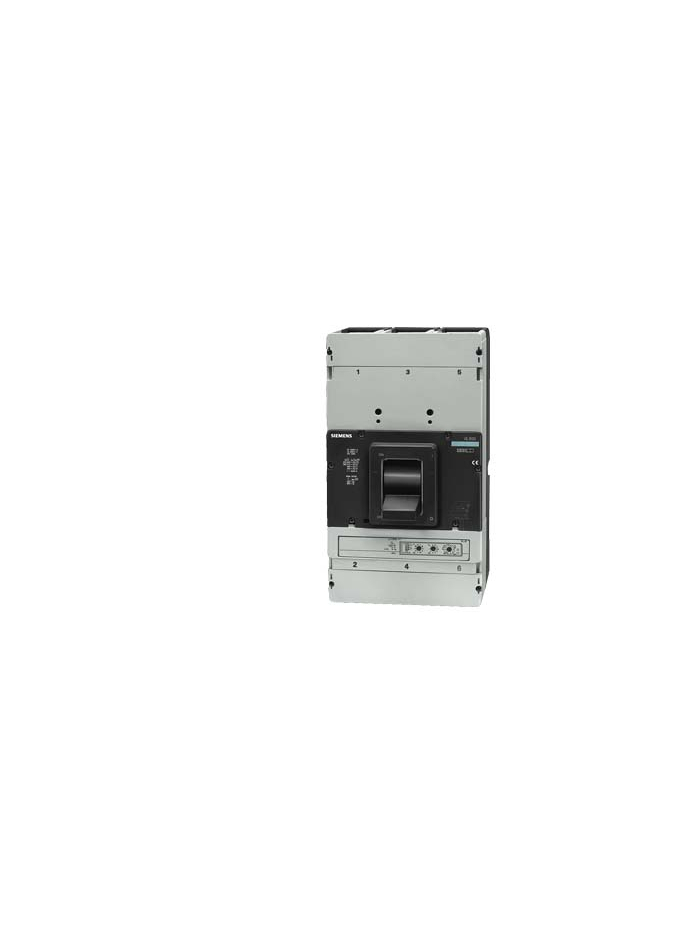

SIEMENS, 3 Pole, 800A, SENTRON 3VL MCCB
Advantages of SENTRON 3VL MCCB
- 3VL molded case circuit breakers meet the high requirements of modern electrical distribution systems because of compact design, outstanding technical characteristics and simple operation
- Versatile and global application
- Available as both thermal-magnetic and electronic version
- Modular design, few components and uniform accessories therefore Simple to configure, build and modify
- Full communication capability via PROFIBUS DP and MODBUS
Application of SENTRON 3VL MCCB
- As incoming and outgoing circuit breakers in LV switchboards
- As switching and protection devices for motors, transformers and capacitors
- As disconnector unit with shutdown and disconnection characteristics in an emergency (EMERGENCY-STOP switch)
- For shutdown and disconnection in conjunction with lockable rotary operators and terminal covers
Features of SENTRON 3VL MCCB
- Rated Current: 400A to 1600A
- Breaking Capacity at 415VAC, 50Hz = 70kA
- Magnetic Trip Unit
- MCCB for Short Circuit protection
3VL6780-2DE36-0AA0
Data sheet
- MCCB APPLICATION
- SHORT CIRCUIT PROTECTION
- MCCB MODEL
- SENTRON 3VL
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- MAGNETIC BASED
- MCCB CURRENT RATING
- 800A
- MCCB/MPCB POLES
- 3 POLE
- MCCB/MCB BREAKING CAPACITY
- 70kA
