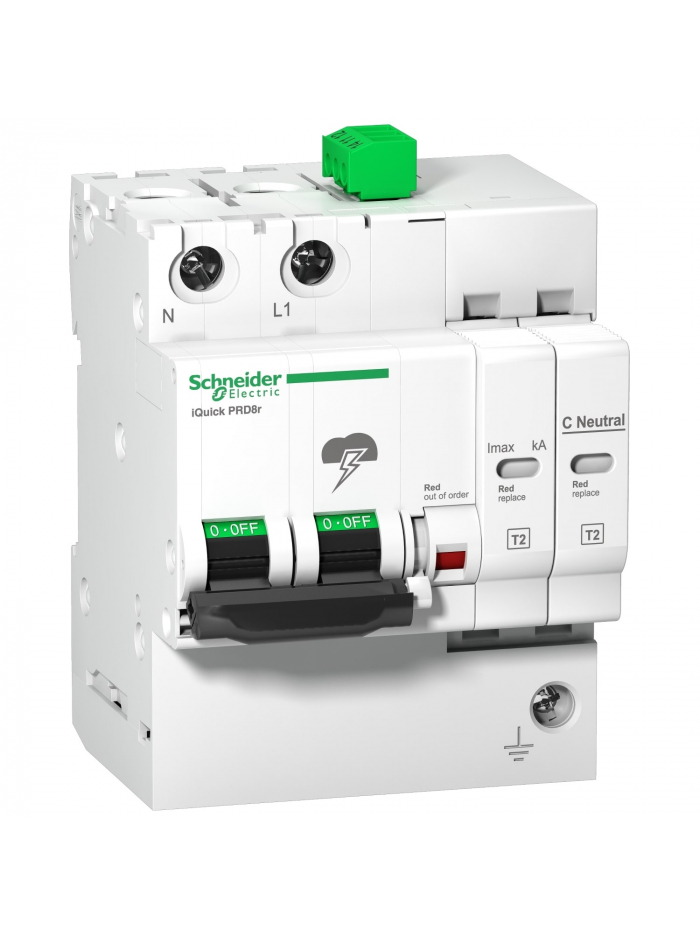

SCHNEIDER, 1 Pole+N, iQuick PRD 40r Surge Arrester with inbuilt MCB
iQuick PRD - Type 2 with inbuilt MCB
Features of iQuick PRD Surge Arrester
- Compact SPD within-built back up MCB - saving on space, MCB selection, wiring time
- Compliance to EN 61643-11
- Types: iQuick PRD 8r, iQuick PRD 20r, iQuick PRD 40r
- Withdrawable Type - Cost Efficient - Allows damaged Cartridges to be replaced without having to replace entire SPD
- Inbuilt SPD Health Indicator on front of device
- Remote signaling available
- Incoming Protection: iQuick PRD 40r (High Risk level) & iQuick PRD 20r (Moderate Risk level)
- Secondary Protection: iQuick PRD 8r is cascade mounted with incoming surge arresters
A9L16292
Data sheet
- SURGE ARRESTOR TYPE
- COUNTRY OF ORIGIN
- NO. OF POLES
Specific References
