HAVELLS, 3 Pole, 125A, Loadline MCCB
Features of Loadline MCCB
- Conforms to IS/IEC:60947-2
- Range: 40A to 160A
- Different Current Ratings provide selection option depending on varied load conditions
- Ics = 100% of Icu
- Breaking Capacity Icu at 415V = 27kA & 36kA
- For Single Pole Breaking Capacity (Icu) at 240V
- Offered in different pole configurations based on system requirement
- In 4Pwsn Version, Neutral make first & break last for addressing Residual Current in the Circuit
- Adjustable Thermal & Fixed Magnetic Setting
- Overload Setting is Adjustable Thermal 80-100% of Rated Current
- Compact Size & Double Insulation
- Provision of push to tip button
- Positive dolly position indication to check the ON/OFF status of the breaker
- Wide range of accessories available
IHA13DB30125
Data sheet
- RATED VOTAGE
- COUNTRY OF ORIGIN
- MCCB PROTECTION TYPE
- MCCB FRAME
- MCCB CURRENT RATING
- MCCB/MPCB POLES
- MCCB/MCB BREAKING CAPACITY
New
16 other products in the same category
Breaking capacity at 415V AC, Ics (Icu) - 100%, Adjustable thermal (70-100%of In) and fixed magnetic (10 x In) for power distribution
40A, DN2-250D, MICROPROCESSOR RELEASE, D SINE MCCB
FMU (Thermal Magnetig} Release, Adjustable Overload 80-100%, Fixed short girguit 10 In.
16A, DY 125U, THERMAL MAGNETIC RELEASE, DY MCCB FOR ISOLATION
Adjustable Thermal Magnetic Trip Unit, Ics = 50% Icu
Breaking capacity at 415V AC, Ics (Icu) - 100%, Adjustable thermal (70-100%of In) and fixed magnetic (10 x In) for power distribution
FMU (Thermal Magnetic) Release, Adjustable Overload 80-100%, Fixed short circuit 10In.

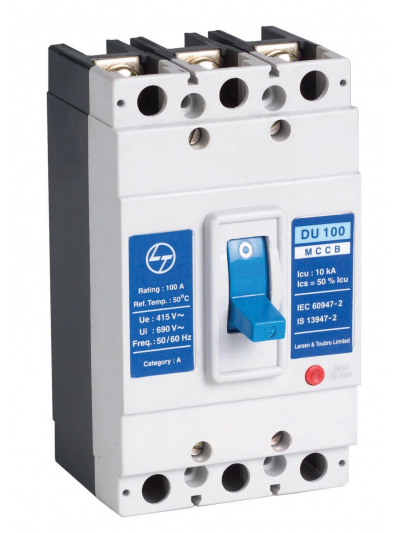

25A, DU 100D, THERMAL MAGNETIC RELEASE, DU MCCB
