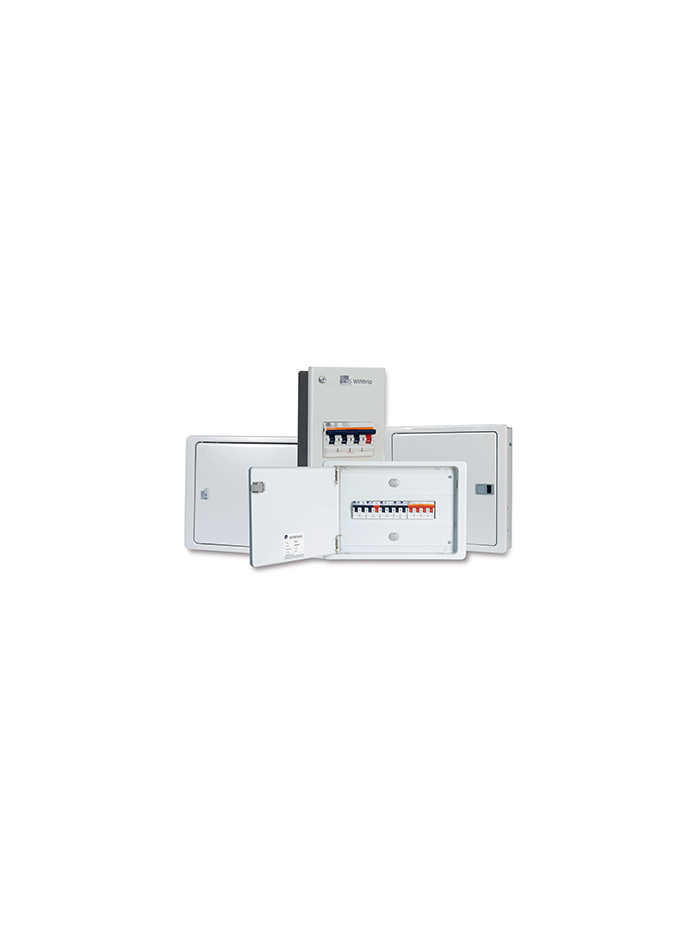

C&S, 12 Way, SPN Single Door, Deepdrawn with pan assembly WiNtrip DB
Features of Distribution Boards
- Fully equipped DBs supplied with busbar, earth links, neutral links and inter connecting links.
- Insulated/captive busbar and neutral links, for safety and protection
- Unique feature of PAN assembly with adequate wiring space.
- Knock outs on all sides
- Double door DB with IP42 /IP43
Range of Distribution Board
- SPN/TPN distribution board horizontal – single & double door
- WiNclass SPN/TPN distribution board horizontal-single & double door
- VTPN distribution board with MCB & MCCB as incomer
- PPI distribution board/TPN phase selector DB
- 7 Segment distribution board / flexy (tier) DB
- Polycarbonate cover consumer unit DB / acrylic SPN DB
- Telephone & TV socket SPN/TPN distribution board/plug & socket distribution board – metal clad & plastic
- Metal & plastic enclosures/cable end box distribution board
- Acrylic TPN distribution board/pre-wired distribution board
- Vertical/horizontal TPN transparent DB with acrylic cover
CSDBSPNSD12
Data sheet
- DB TYPE
- DOOR TYPE
- WAY
- TOTAL MODULES
- COUNTRY OF ORIGIN
