Advantages of EasyPact MVS ACB

•
  Thermal memory ensures safe tripping in case of consecutive faults
• In-built ZSI feature facilitates intelligent discrimination and enhances installation life
• Mechanical ready to close features checks all safety parameters before closing for enhanced safety
• Trip unit with built in current & voltage metering for easy access to important electrical parameter
• Best in class break time of 25ms creates lower stress on installation
•
  Pollution degree 4 allows the breaker to operate in harsh environments
• LED bargraph ensures easy access to % phase wise loading information
•
  Ap protection feature standard in all trip unit
•
  Single frame for 800A to 4000A
• Suitability for applications up to 690V
• Flexible terminal orientation enables horizontal or vertical alignment chnages in the field

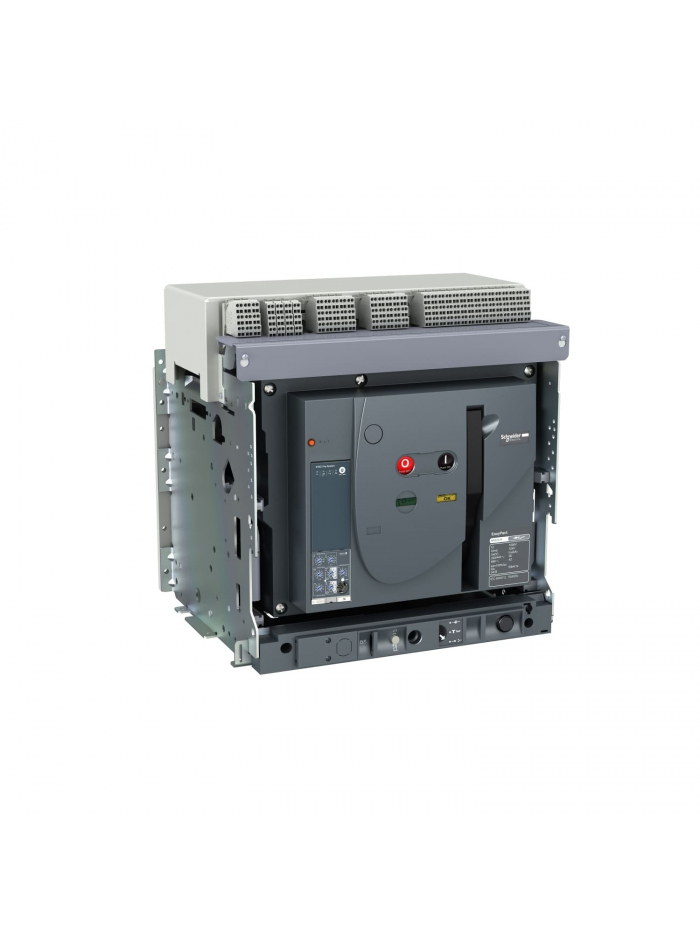

EasyPact MVS Draw out ACB

• Conforms to IS/ IEC 60947-2 & 3
• Microprocessor based ET trip systems with thermal memory
• No derating up to 50˚C
• Zone Selective Interlocking
• Fully rated neutral with inbuilt protection
• Pre trip alarm & individual fault indicating LEDs
• ET6L provides Overload, Short-circuit, Instantaneous & Earth-fault protections
• ET2L provides Overload & Short-circuit protections
• I_cu=I_cs=I_cw (1Sec)=50kA at 440V AC

Note: All draw-out type circuit breakers will be supplied with: (i) Top and Bottom horizontal terminations. (ii) 1 No. Electrical fault indication Contact (SDE). (iii) No. Auxiliary contact block (OF) with 4 C/O contacts. (iv) Safety shutters on Chassis & door sealing frame- Escutcheon (CDP). All Electrical operated breakers are supplied with  motor mechnism (MCH), closing coil (XF) & shunt release (XF)
