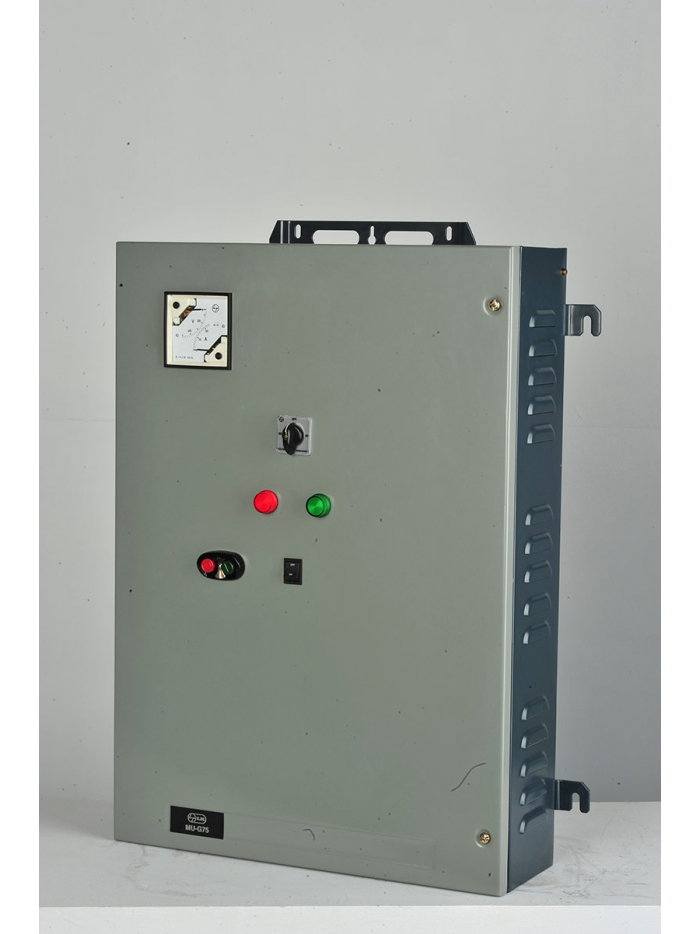

L&T, 75HP, MU-G75 FASD SUBMERSIBLE PUMP CONTROLLER
Features of FASD Submersible Pump Controller
- Type MU-G FASD Submersible Pump Controller in Sheet Enclosure
- MU-G15 – with MK1 contactors, MK1 relay and SDz5 (SPPR + timer)
- MU-G20 & MU-G20H – with MU contactors, MU relay and SDz5 (SPPR + timer)
- MU-G30 – ML contactors, MN relay and SDz5 (SPPR + timer)
- MU-G50 - ML contactors, MN relay and SDz5 (SPPR + timer)
- MU-G75 - ML contactors, MN relay and SDz5 (SPPR + timer)
- Motor Rating: 15-75HP, 11-56kW, AC-3 Duty, 3 phase, 415V AC
- The ON/OFF operation and overload protection features equipped in Controllers, it also provides additional features like Auto ON, indications of Supply ON/OFF and Pump ON/OFF, reading of real time voltage & current of pump with unique Dual analog meter.
- Single phasing protection relay (SPPR) inside Controller unit provides the advanced protection features viz. single-phasing prevention, phase-reversal protection, phase-unbalance protection, variable time-delay adjustment for delayed operation of pump set.
CS96451
Data sheet
- MOTOR PHASES
- COUNTRY OF ORIGIN
- MOTOR HP
- MOTOR KW
- RELAY RANGE
Specific References
New
16 other products in the same category
C&S, 12HP, 3 Phase, DOL,...
Incorporating Hour meter- Standard Model incorporating Heavy Duty 4 Pole contactor type TC1-DX, overload relay type LR3D, Auto Start switch, 3 position selector switch for SPP Auto/SPP Manual/Manual, Dual Analog VA Meter, Hour meter (To monitor SPCU power ON hours), rocker switch (ON/OFF Switch) Motor ON & Trip LED Indicator.
C&S, 1HP, 1 Phase,...
Incorporating DP Contactor, fixed current relay; Digital VA meter & Start and Run Capacitor with MCB.

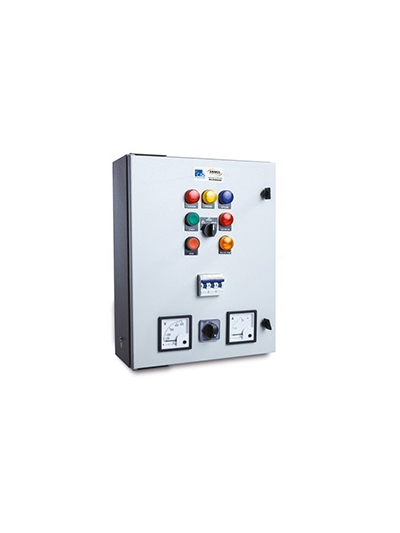

C&S, 3HP, AUTOMATIC STAR...
