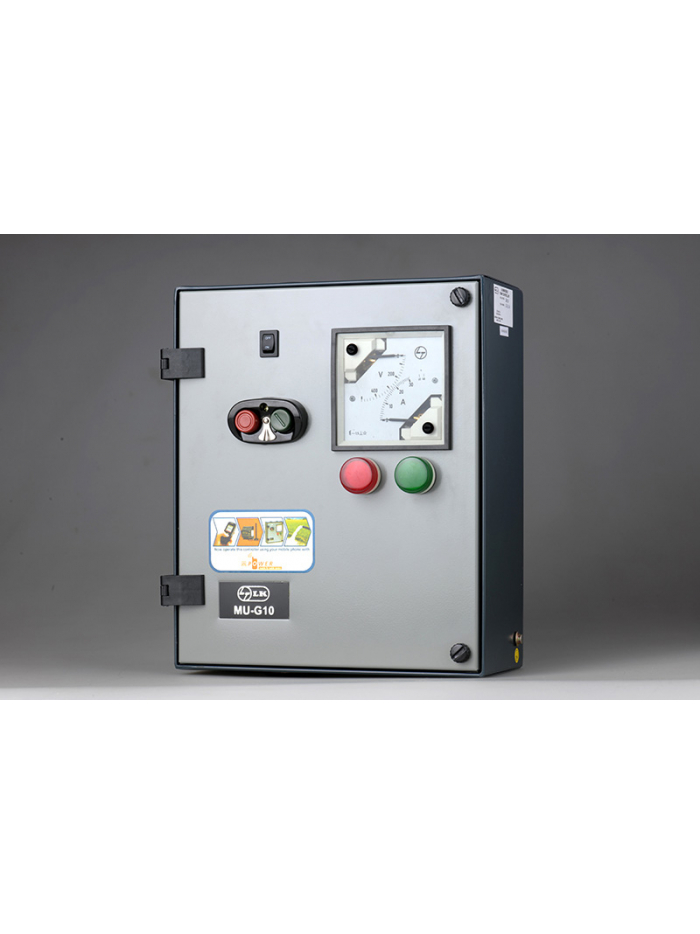

Type MU - G DOL Submersible Pump Controller in Sheet Enclosure
- MU-G6 – with MK1 contactor, MK1 relay and Sz5 (SPPR)
- MU-G10 & MU-G10H - with MU contactor, MU relay and Sz5 (SPPR)
Motor Rating: 6-10HP, 4.5-7.5kW, AC-3 Duty, 3 phase, 415V AC
The ON/OFF operation and overload protection features equipped in Controllers, it also provides additional features like Auto ON, indications of Supply ON/OFF and Pump ON/OFF, reading of real time voltage & current of pump with unique Dual analog meter.
Single phasing protection relay (SPPR) inside Controller unit provides the advanced protection features viz. single-phasing prevention, phase-reversal protection, phase-unbalance protection, variable time-delay adjustment for delayed operation of pump set.
Incorporating Heavy Duty 4 Pole contactor type TC1-DX, overload relay type LR3D/LR1D, Auto Start switch, 3 position selector switch for SPP Auto/SPP Manual/Manual, Dual Analog VA Meter, Hour meter( To monitor SPCU power ON hours),RYB LED indicator,Motor ON & Trip LED Indicator, TP 'C' curve MCB for short circuit protection
Incorporating Heavy Duty 4 Pole contactor type TC1-DX, overload relay type LR3D/LR1D, Auto Start switch, 3 position selector switch for SPP Auto/SPP Manual/Manual, On/ Off Rocker switch, voltmeter with selector switch suppressed scale ammeter, Motor ON & Trip LED Indicator.
Incorporating Heavy Duty 4 Pole contactor type TC1-DX, overload relay type LR3D/LR1D, Auto Start switch, 3 position selector switch for SPP Auto/SPP Manual/Manual, On/ Off Rocker switch, voltmeter with selector switch suppressed scale ammeter, Motor ON & Trip LED Indicator.
Incorporating Heavy Duty 4 Pole contactor type TC1-DX, overload relay type LR3D/LR1D, Auto Start switch, 3 position selector switch for SPP Auto/SPP Manual/Manual, Dual Analog VA Meter, Hour meter( To monitor SPCU power ON hours),RYB LED indicator,Motor ON & Trip LED Indicator, TP 'C' curve MCB for short circuit protection
Incorporating 2 Pole Definite Purpose Contactor, Single Pole MCB, Ammeter, ON/OFF Push button, Motor ON indicator with provision of terminal for dry run relay
Incorporating Hour meter- Standard Model incorporating Heavy Duty 4 Pole contactor type TC1-DX, overload relay type LR3D, Auto Start switch, 3 position selector switch for SPP Auto/SPP Manual/Manual, Dual Analog VA Meter, Hour meter (To monitor SPCU power ON hours), rocker switch (ON/OFF Switch) Motor ON & Trip LED Indicator.
Incorporating Heavy Duty 4 Pole Contactor type TC1-DX, Overload relay type LR3D/LR1D, Auto Start Switch, 3 Position selector switch for SPP Auto/SPP Manual / Manual, Voltmeter with Selector Switch, Suppressed scale Ammeter, RYB LED Indicator Motor ON & Trip LED Indicator, TP 'C' curve MCB for short circuit protection.
Incorporating Heavy Duty 4 Pole contactor type TC1-DX, overload relay type LR3D, Auto Start switch, 3 position selector switch for SPP Auto/SPP Manual/Manual, Dual Analog VA Meter, Hour meter ( To monitor SPCU power ON hours), Motor ON & Trip LED Indicator, TP 'C' curve MCB for short circuit protection.
Incorporating Heavy Duty 4 Pole contactor type TC1-DX, overload relay type LR3D, Auto Start switch, 3 position selector switch for SPP Auto/SPP Manual/Manual, On / Off Rocker switch, Motor ON & Trip LED Indicator.
Incorporating Heavy Duty 4 Pole Contactor type TC1-DX, Overload relay type LR3D/LR1D, Auto Start Switch, 3 Position selector switch for SPP Auto/SPP Manual / Manual (AS4), Voltmeter with Selector Switch, Suppressed scale Ammeter, Motor ON & Trip LED indicator with rigid Busbar.
Incorporating Heavy Duty 4 Pole contactor type TC1-DX, overload relay type LR3D/LR1D, Auto Start switch, 3 position selector switch for SPP Auto/SPP Manual/Manual, Dual Analog VA Meter, Rocker Switch (ON/OFF) Hour meter (To monitor SPCU power ON hours), RYB LED indicator, Motor ON & Trip LED Indicator
In Sheet Enclosure Type MU - G (Motor Rating AC-3 Duty, 415V, 50Hz, 3 phase)
