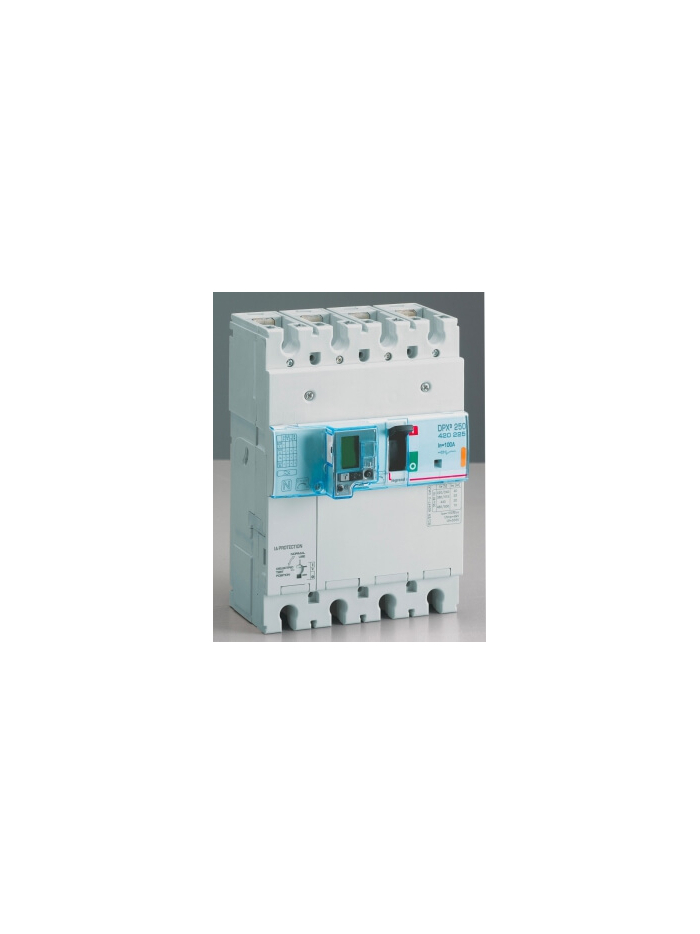

Legrand, 4 Pole, 100A, DPX³ 250 MCCB
  • Legrand, 4 Pole, 100A, DPX³ 250 MCCB

Legrand, 4 Pole, 100A, DPX³ 250 MCCB

Features of DPX3 MCCB

  • MCCB with Thermal Magnetic & Electronic earth leakage module
  • Current rating from 16A to 250A
  • Ics=100%Icu
  • Two Optimum Frames
  • Thermal Adjustable – 0.8 to 1In, Magnetic Adjustable – 5 to 10In
  • Breaking Capacity – 16kA, 25kA, 36kA, 50kA
  • Option for In built or add on module for Earth Leakage Protection
  • Adjustable sensitivity: 0.03 - 0.3 - 1 - 3A
  • Adjustable tripping: 0 - 0.3 - 1 - 3s

  • Suitable for Isolation

  • Optional accessories like Rotary Handles, Motor Operators etc. are also available

  • DPX3 can also be used as an Automatic Transfer Switch (Source transfer S/W)

4202 25

Data sheet

MCCB MODEL
COUNTRY OF ORIGIN
MCCB PROTECTION TYPE
MCCB CURRENT RATING
MCCB/MPCB POLES
MCCB/MCB BREAKING CAPACITY

Specific References

New
