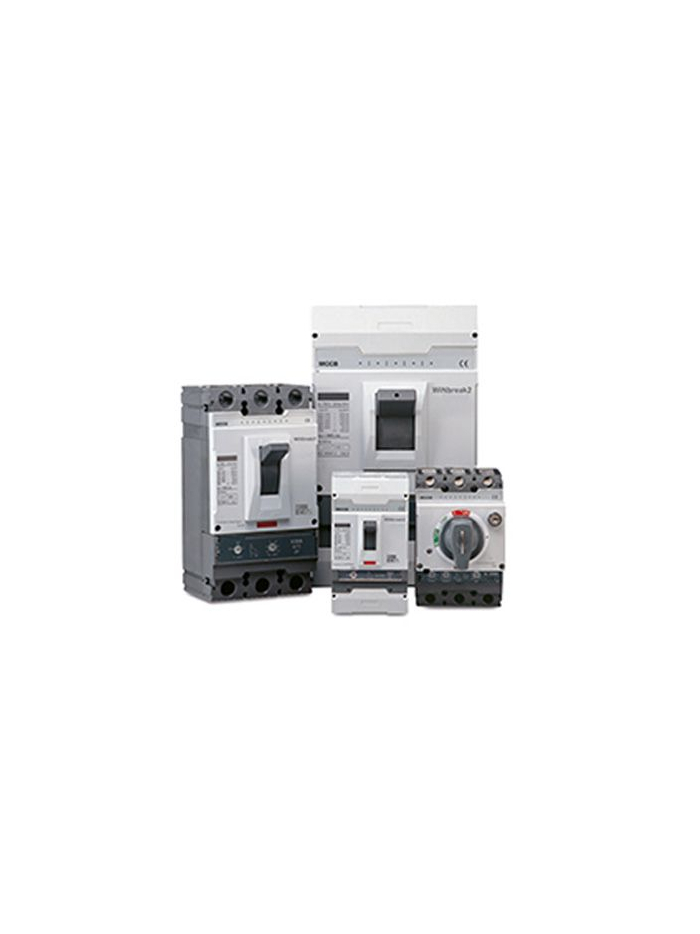

C&S, 3 Pole, 630A, WiNbreak2 MCCB
ATU (Thermal Magnetic) Release, Adjustable Overload 80 - 100%, Adjustable Short circuit 5 - 10 In.
Features of WiNbreak2 MCCB
- Conforms to IS/IEC 60947-2
- Ics = 100% Icu
- Range: 16A to 1600
- ATU (Thermal Magnetic) Release
- Adjustable Overload 80-100%
- Adjustable Short Circuit 5-10In
- Positive Isolation
- Trip Free Mechanism
- Double contact structure
- Communication compatible
- No Line-load Bias
- Neutral with 100% rated current
- Tripping by pressure
- Current limiting
- Manual, Rotary or Motorized available
- Wide range of internal & external accessories
- Standard Packing includes spreader terminals, insulating phase barrier & hardware
CS630NATU6303P
Data sheet
- MCCB CONTROL VOLTAGE
- COUNTRY OF ORIGIN
- MCCB PROTECTION TYPE
- MCCB FRAME
- MCCB CURRENT RATING
- MCCB/MPCB POLES
- MCCB/MCB BREAKING CAPACITY
