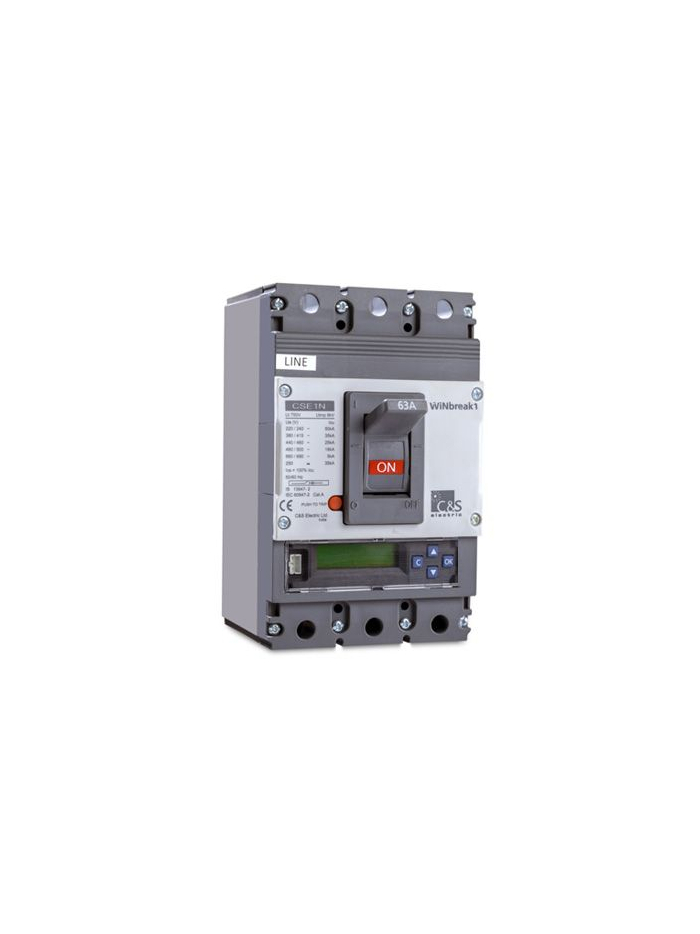

C&S, 3 Pole, 80-200A, WiNbreak1 MCCB
  • C&S, 3 Pole, 80-200A, WiNbreak1 MCCB

C&S, 3 Pole, 80-200A, WiNbreak1 MCCB

ETM (with in-built Earth fault Protection), Adjustable Overload 40 - 100% , Adjustable shortcircuit 2-12 Ir.

Features of WiNbreak1 MCCB

  • Microprocessor Release MCCB
  • Conforms to IS/IEC 60947-2
  • Ics=100%Icu
  • Range 40A to 250A
  • Breaking capacity: 35kA & 50kA
  • Suitable for isolation
  • ETM (with inbuilt Earth Fault Protection)
  • Adjustable over load from 0.4-1.0In
  • Adjustable short circuit from 2-12Ir
  • Inbuilt ground fault protection available 20% to 100% of In
  • Adjustable neutral overload protection available: 50% to 100% of Ir
  • Adjustable current imbalance protection available: (30%-70%) of Ir
  • Provision of thermal memory: ON/OFF
  • View last trip information
  • LCD: Indication of measurement and information.
CSE2NN250ETM3P-200A

Data sheet

MCCB CONTROL VOLTAGE
COUNTRY OF ORIGIN
MCCB PROTECTION TYPE
MCCB FRAME
MCCB CURRENT RATING
MCCB/MPCB POLES
MCCB/MCB BREAKING CAPACITY

Specific References

New
