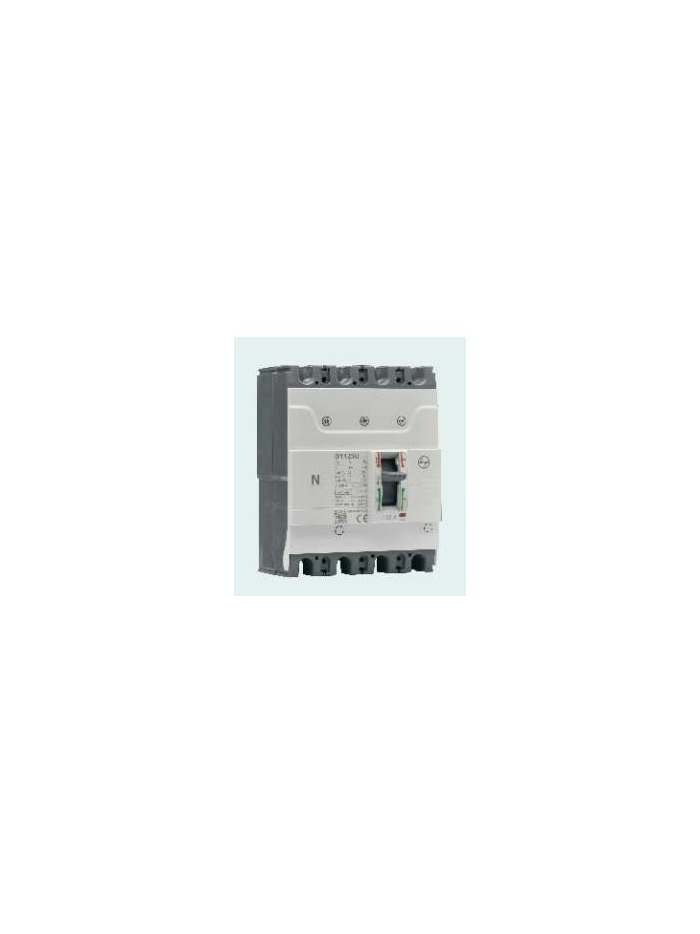

L&T, 4 Pole, 160A, DZ1-160N MCCB
63A, DZ1-160D, ITRP1 RELEASE, D SINE MCCB FOR ISOLATION
Conforms to IS/IEC 60947-2 & IEC 60947-2, 4 Pole, Ics=100% of Icu, Wide range of adjustable overload setting from 0.25 - 1.0 x In, Adjustable short circuit setting from 1.5 - 12 x Ir, OR Instantaneous setting from 1.5 - 12 x In, Neutral Overload protection, Suitable for isolation, Compact size, Provision of thermal memory ON/OFF, Variable trip class, Wide range of internal and external accessories, Transparent release cover.
DZ1F0160NXF1A
Data sheet
- MCCB APPLICATION
- MCCB MODEL
- COUNTRY OF ORIGIN
- MCCB PROTECTION TYPE
- MCCB CURRENT RATING
- MCCB/MPCB POLES
- MCCB/MCB BREAKING CAPACITY
Specific References
New
