ASHIDA AVAJH13 RELAY
AVAJH13 Single Element High Speed HR Contact
High Speed Master Trip Electromechanical Relay :AVAJH13Standard Specifications : Operating Limits : 50 to 120% of rated coil voltage. Operational Time : 10 - 15ms at nominal rated voltage. Coil Rating : 24V / 30V / 110V / 220V DC or AC. Burden : @30 VDC / 24VDC : 7 VA, @110 VDC : 10 VA, @220VDC : 7 VA. Operational Indicator : Mechanical Flag (Red for Alarm, white for Normal) in window : HR Type. Contacts : 5 pair of HR (Hand Reset). Combinations : 5 contacts. Relay conforms : IS : 3231 -1981 fully for all requirements.
AVAJH13
Data sheet
- COUNTRY OF ORIGIN
- INDIA
Specific References
New
16 other products in the same category
ABB, 3 Phase, 380-440V AC,...
Single and three phase monitoring relays for phase failure detection, Without neutral monitoring, CM_PBE
ABB, 3 Phase, 350-580V AC,...
Multifunctional three phase monitoring relays, automatic phase sequence correction and separate monitoring of over and undervoltage (window monitoring) configurable, CM-MPN.52P

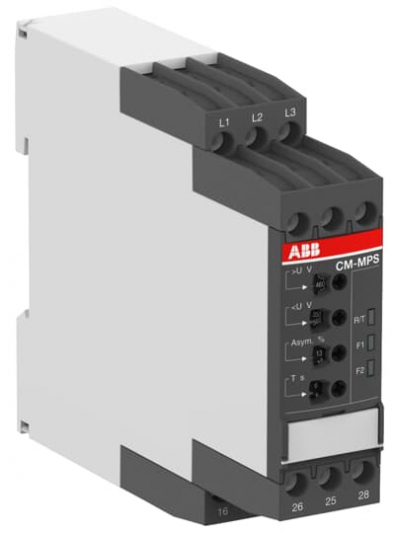

ABB, 3 Phase, 90-170V AC,...
