PECO, 225A, 3 Pole, PC-11 POWER CONTACTOR
Features of AC AIR BREAK Contactors
- Fully confirms to IS/IEC: 60947 (Part 4/Section 1)
- Contactors type PK-1, PC-0, PC-1, PC-1.5, PC-2, PC-3, PC-4, & PC-6 are ISI marked.
- Type PK1 contactor is 4 Pole and Type PC is 3 Pole.
- These Contactors consist of a fixed contact system with a magnetic core, solenoid coil and a moving contact system with an armature.
- Robust and Sturdy design.
- Provides Trouble Free and Noiseless Operation.
- Exceptionally long contact life under severe condition due to bounce-free double break design and silver alloy contact tips.
- 2NO + 2NC auxiliary contacts is a standard feature. (Add on Contact blocks in case of PC-8, PC-10 to PC-12).
- The Main, Auxiliary contacts and coil are easily accessible for inspection and replacement purpose.
- The unit can be mounted in any position on Vertical / Horizontal plane.
- Magnetic Cores have a very low loss and are provided with shading rings to reduce chattering and humming.
- Wide ranges of Coil Voltages are available.
- In PC-1.5, shroud is a standard feature and shroud is optional in case of PC-0 and PC-1 Contactors.
- Spare kit containing Main and Auxiliary contacts are available at nominal Price.
- Current Rating: 12A to 300A
- Standard Coil Voltage: 24V to 525V AC
PC21511
Data sheet
- CONTACTOR COIL VOLTAGE
- 110-525V AC
- COUNTRY OF ORIGIN
- INDIA
- CONTACTOR AC3 RATING
- 225A
- CONTACTOR AUX.CONTACTS
- 2NO+2NC
- MOTOR HP
- 150
- CONTACTOR POLES
- 3 POLE
- MOTOR KW
- 110
- CONTACTOR TYPE
- PC-11
New
16 other products in the same category

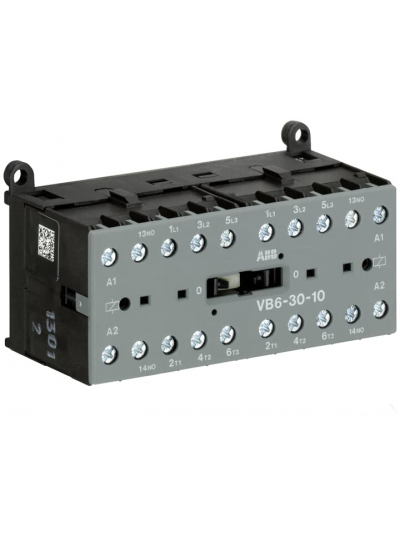

Mini Reversing Contactors With Screw Connection
