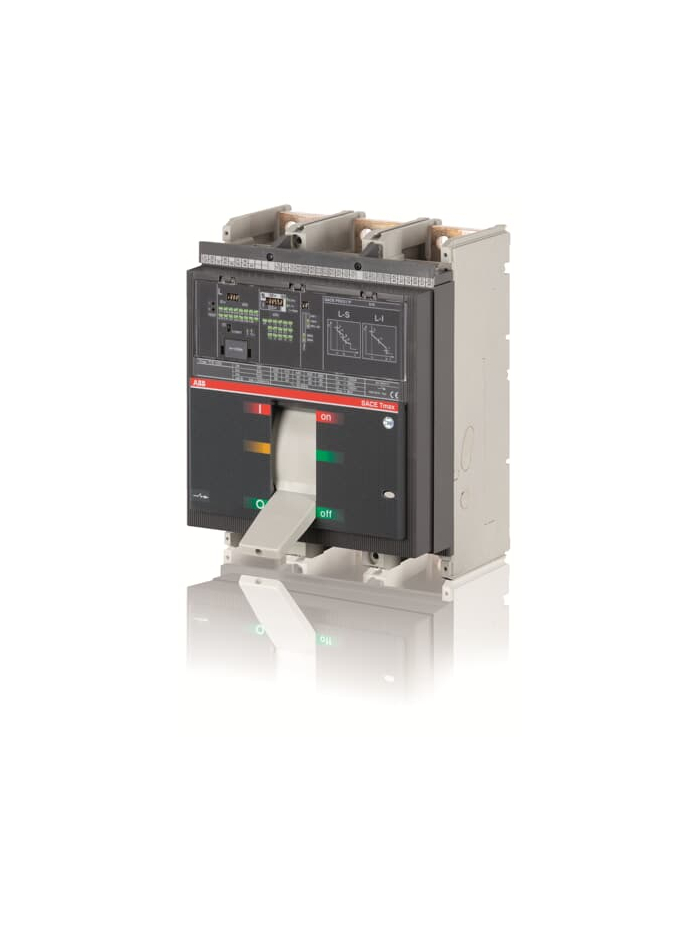

ABB, 3 Pole, 1600A, 50kA, T7 MPCB
  • ABB, 3 Pole, 1600A, 50kA, T7 MPCB

ABB, 3 Pole, 1600A, 50kA, T7 MPCB

Breaking Capacity at 415V AC, Ics (Icu) - 100%, I = 1 - 10 of In.
Feature of Tmax MPCB, Duty mode setting (Normal/Heavy): Normal duty mode requires use of a circuit-breaker and a contactor. In the case of tripping, the Ekip M-LRIU release commands the opening of the contactor via PR212/CI; Heavy duty mode foresees circuit-breaker opening for all overcurrent conditions, and just the function of motor operation is entrusted to the contactor, PTC protection setting: PTC: this protection, monitors the temperature inside the protected motor by means of a PTC sensor., ABB Solutions for Starting, switching and protection of three-phase asynchronous motors- A traditional system, A system of integrated protection.
1SDA062993R1

Data sheet

MCCB APPLICATION
MOTOR PROTECTION
MCCB MODEL
T7
COUNTRY OF ORIGIN
INDIA
MCCB PROTECTION TYPE
MICROPROCESSOR BASED
MCCB FRAME
T7 1600
MCCB TRIP UNIT
PR231/P I
MCCB/MPCB POLES
3 POLE
MCCB/MCB BREAKING CAPACITY
50kA
MPCB CURRENT RATING
1600A
