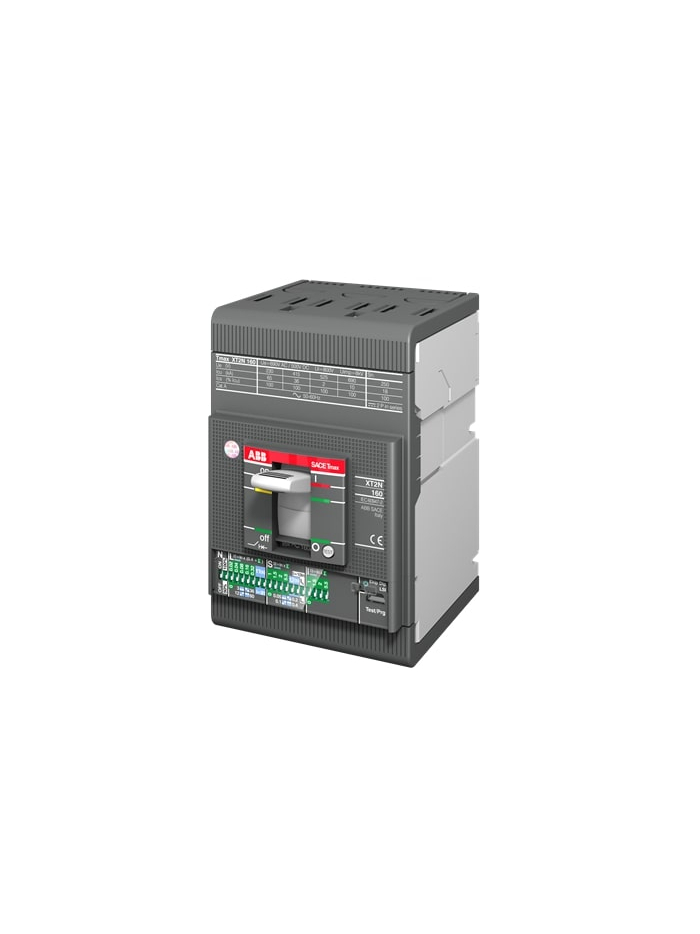

ABB, 3 Pole, 20A, 70kA, XT2 MPCB
Breaking Capacity at 415V AC, Ics (Icu) - 100%, I = 6 - 14 of In.
Feature of Tmax MPCB, Duty mode setting (Normal/Heavy): Normal duty mode requires use of a circuit-breaker and a contactor. In the case of tripping, the Ekip M-LRIU release commands the opening of the contactor via PR212/CI; Heavy duty mode foresees circuit-breaker opening for all overcurrent conditions, and just the function of motor operation is entrusted to the contactor, PTC protection setting: PTC: this protection, monitors the temperature inside the protected motor by means of a PTC sensor., ABB Solutions for Starting, switching and protection of three-phase asynchronous motors- A traditional system, A system of integrated protection.
1SDA067886R1
Data sheet
- MCCB APPLICATION
- MOTOR PROTECTION
- MCCB MODEL
- XT2
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- MICROPROCESSOR BASED
- MCCB FRAME
- XT2 160
- MCCB TRIP UNIT
- EKIP M-I
- MCCB/MPCB POLES
- 3 POLE
- MCCB/MCB BREAKING CAPACITY
- 70kA
- MPCB CURRENT RATING
- 20A
