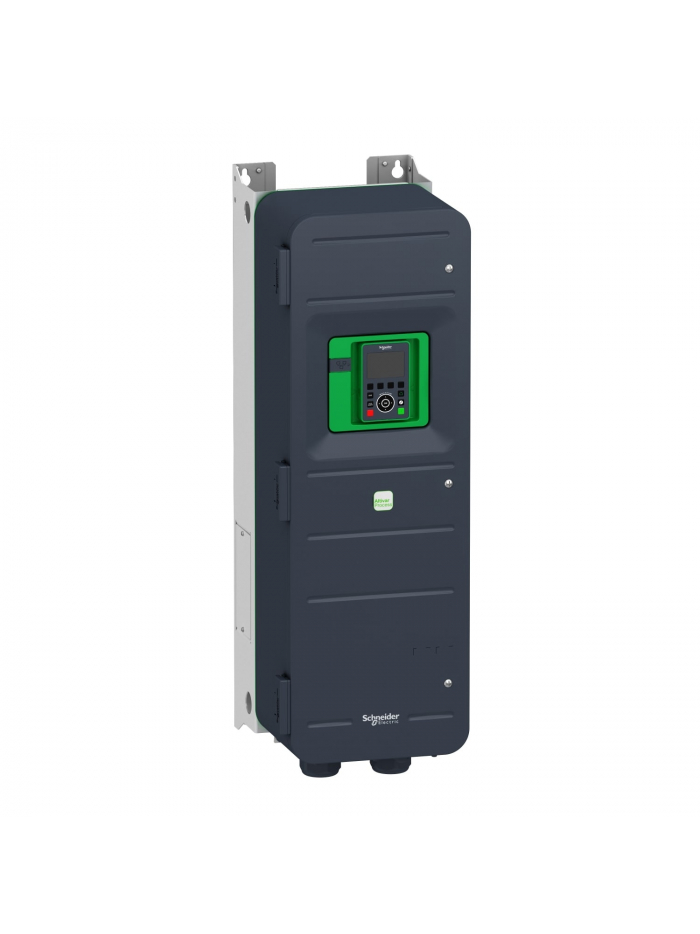

SCHNEIDER, 74.5A, 37kW, 3 Phase, IP55 Normal Duty, Altivar ATV650 VSD
  • SCHNEIDER, 74.5A, 37kW, 3 Phase, IP55 Normal Duty, Altivar ATV650 VSD

SCHNEIDER, 74.5A, 37kW, 3 Phase, IP55 Normal Duty, Altivar ATV650 VSD

Feature of Altivar Process ATV650 : Variable Speed IIOT Drive dedicated to process Industry and Utilities (Pump & Fan) from 0.75 kW to 315 Kw, Alfa-numeric and graphical display to monitor trends and values, Inbuilt features dedicated for Pump eg. Pump Curves, Pipe fill, Anti Jam, Pipe cleaning etc, Calculative power consumption with respect to flow (kwh/m^3), VFD designed for 50 deg C without derating, In Built choke & EMC Filter, Integrated Modbus & Modbus TCP/IP (Ethernet), Web server inbuilt, Ethernet & Modbus in Built, QR code feature in built to get documents acess on line and register service request directly from QR code, Three phase-Supply Voltage:380…480V (IP21).
ATV650D37N4-ND

Data sheet

MOTOR PHASES
3PHASE
VOLTAGE RANGE
380-480V
MOTOR STARTER MODEL
ATV650
COUNTRY OF ORIGIN
INDIA
MOTOR KW
37
CURRENT RATING
74.5A

Specific References

New
