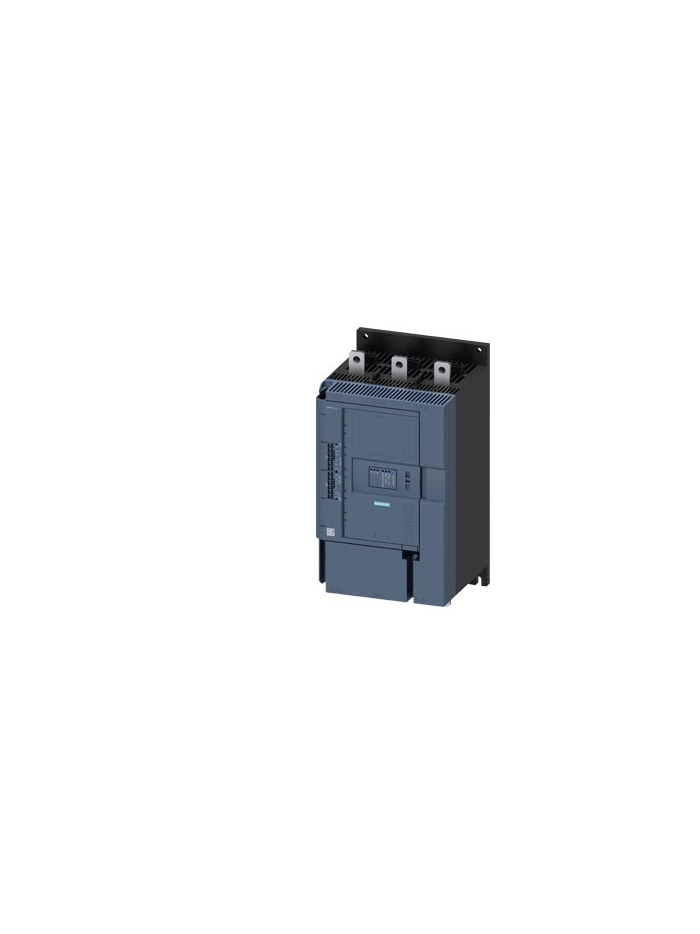

SIEMENS, 200kW, SIRIUS 3RW52 DIGITAL SOFT STARTER
Features of SIRIUS 3RW52 Digital soft starters
- SIRIUS 3RW52 starters for Standard Applications
- Range From 5.5 to 315kW
- Main Voltage:200-480V & 200-600V
- Control Voltage: 24V AC/DC & 110-250V AC
- Bypass System: Integrated (Hybrid technology)
- Motor over load protection class: 10A, 10E, 20E
- Analog output: 0-10V & 4-20mA (Optional)
- Controlled Phasses: 3
- Connection Type: Standard & Inside Delta
- Communication: Optional
- Operator Panel: Standard and High features HMI
- PCB Coating: All PCBs.
3RW5246-2AC14
Data sheet
- TYPE OF STARTER
- DIGITAL SOFT STARTER
- RATED OPERATIONAL CURRENT
- 370/328A
- RATED OPERATIONAL VOLTAGE
- 200-480V
- CONTROL VOLTAGE
- 110-250V AC
- OPERATING CURRENT RANGE
- 370/328A
- MOTOR STARTER MODEL
- SIRIUS 3RW52
- COUNTRY OF ORIGIN
- INDIA
- MOTOR KW
- 200
- MOTOR APPLICATION
- AGRICULTURE
