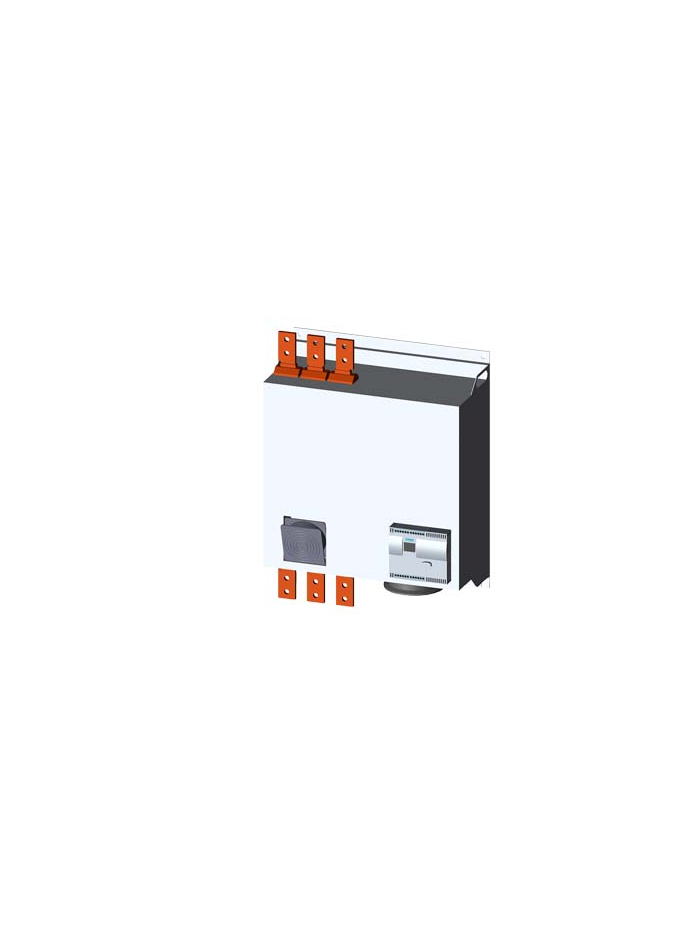

SIEMENS, 630kW SIRIUS 3RW44 Digital Soft Starter
  • SIEMENS, 630kW SIRIUS 3RW44 Digital Soft Starter

SIEMENS, 630kW, SIRIUS 3RW44 DIGITAL SOFT STARTER

Features of SIRIUS 3RW44 Digital soft starters

  • 3RW44 Digital soft starters for heavy duty applications
  • Range From 22 to 1200 kW
  • Operating voltage: 200-460V
  • Control voltage: 115V AC, 230V AC
  • Coated Circuit board for better withstanding in harsh environments
  • Torque control, Adjustable current limiting
  • Graphical display (LCD) with background illumination
  • Optional communication modules (PROFINET/PROFIBUS DP)
  • Integrated bypass contact system
  • Integrated state and fault monitoring
  • Standard circuit (in-line) and inside-the-delta circuit
  • Creep speed / inching mode / brake function.
3RW4465-6BC44

Data sheet

TYPE OF STARTER
DIGITAL SOFT STARTER
RATED OPERATIONAL CURRENT
1076/970/880A
RATED OPERATIONAL VOLTAGE
230-460V
CONTROL VOLTAGE
230V AC
OPERATING VOLTAGE RANGE
230-460V
OPERATING CURRENT RANGE
1076/970/880A
MOTOR STARTER MODEL
SIRIUS 3RW44
COUNTRY OF ORIGIN
INDIA
MOTOR KW
630
MOTOR APPLICATION
INDUSTRIAL
