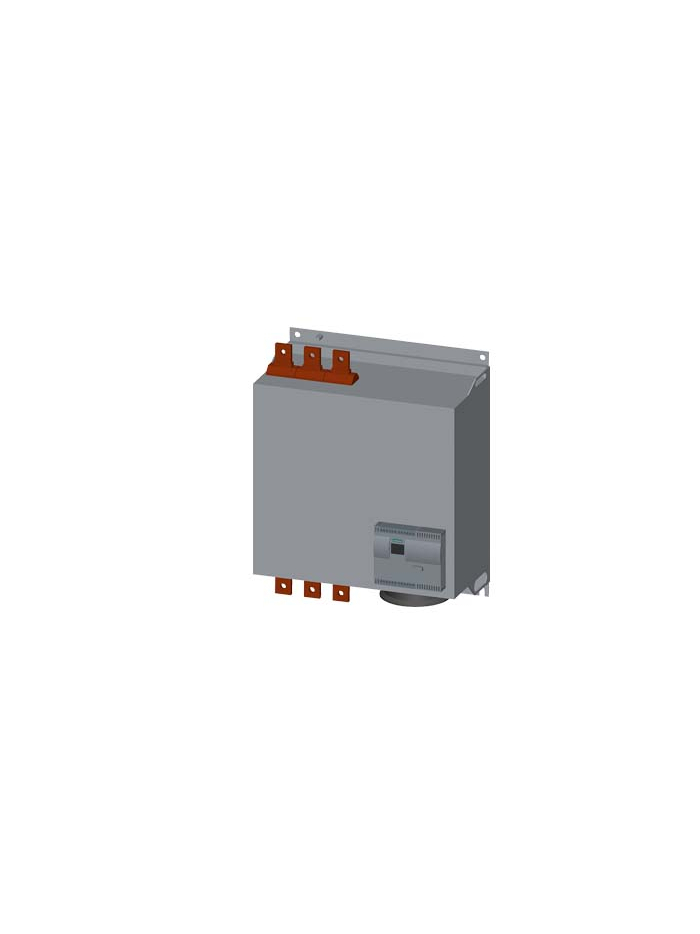

SIEMENS, 455kW, SIRIUS 3RW44 DIGITAL SOFT STARTER
Features of SIRIUS 3RW44 Digital soft starters
- 3RW44 Digital soft starters for heavy duty applications
- Range From 22 to 1200 kW
- Operating voltage: 200-460V
- Control voltage: 115V AC, 230V AC
- Coated Circuit board for better withstanding in harsh environments
- Torque control, Adjustable current limiting
- Graphical display (LCD) with background illumination
- Optional communication modules (PROFINET/PROFIBUS DP)
- Integrated bypass contact system
- Integrated state and fault monitoring
- Standard circuit (in-line) and inside-the-delta circuit
- Creep speed / inching mode / brake function.
3RW4456-6BC44
Data sheet
- TYPE OF STARTER
- DIGITAL SOFT STARTER
- RATED OPERATIONAL CURRENT
- 780/693/615A
- RATED OPERATIONAL VOLTAGE
- 230-460V
- CONTROL VOLTAGE
- 230V AC
- OPERATING VOLTAGE RANGE
- 230-460V
- OPERATING CURRENT RANGE
- 780/693/615A
- MOTOR STARTER MODEL
- SIRIUS 3RW44
- COUNTRY OF ORIGIN
- INDIA
- MOTOR KW
- 450
- MOTOR APPLICATION
- INDUSTRIAL
