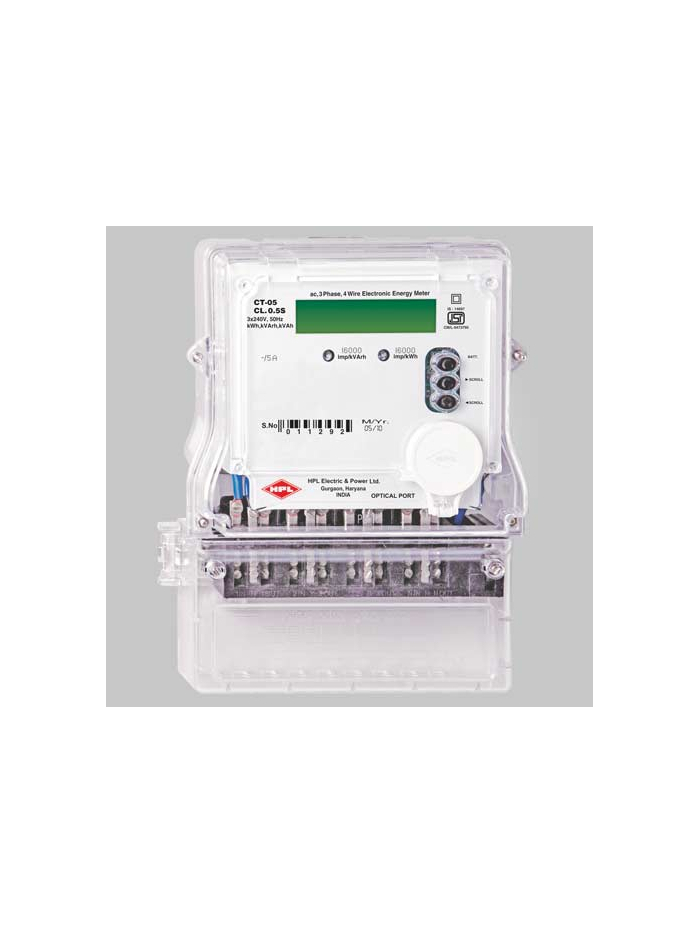

HPL, 5A, 3 Phase LT-CT Operated Trivector MULTIFUNCTION DLMS Type ENERGY METER
AC Three Phase LT/CT Multifunction DLMS Compliance Energy meter in Poly Carbonate Body in Accuracy Class 0.5 as per IS-14697 / IS-13779, 3 X 240V, 50Hz with Optical & RS232 Port, Backlit LCD Display, Measures & Displays Trivector Energy, Load survey, TOD, Tamper detection & logging, Power On/Off Events, instantaneous parameters of Rating -/5A with display in absence of power.
TLPB2921131000OC00
Data sheet
- AUXILIARY SUPPLY VOLTAGE
- 240V
- NO OF PHASES & WIRE
- 3PHASE
- COMMUNICATION PORT
- RS232 PORT
- COUNTRY OF ORIGIN
- INDIA
- CLASS OF ACCURACY
- 0.5
- CURRENT RATING
- 5A
- MOUNTING METHOD
- PROJECTION MOUNTING
Specific References
