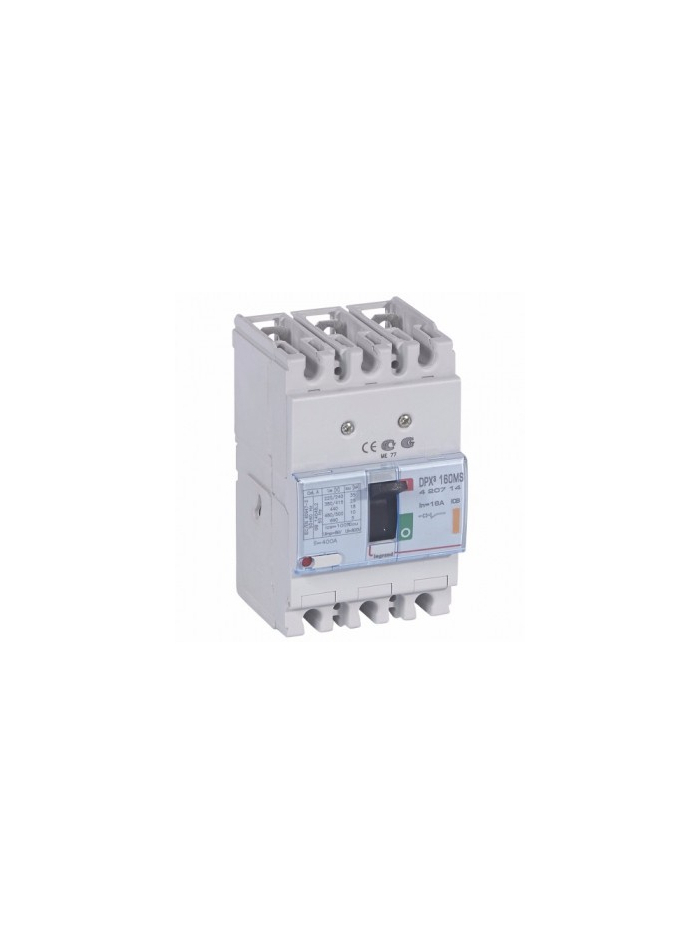

Legrand, 3 Pole, 16A, DPX³ 160 MCCB
Features of DPX3 MCCB
MCCB with Magnetic Release
Breaking Capacity - 16kA, 25kA & 36kA
Can be fitted with auxiliaires
For switching, remote tripping and protection of three-phase motors
Reference
4207 14
Data sheet
MCCB MODEL
DPX³ 160
COUNTRY OF ORIGIN
INDIA
MCCB PROTECTION TYPE
MAGNETIC BASED
MCCB CURRENT RATING
16A
MCCB/MPCB POLES
3 POLE
MCCB/MCB BREAKING CAPACITY
25kA
Condition
New
