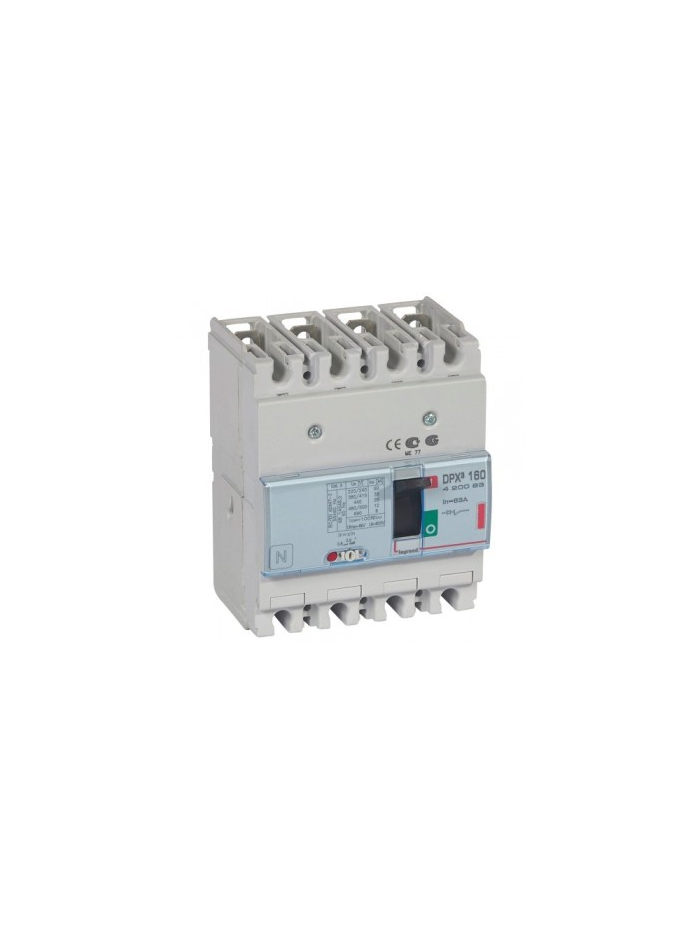

Legrand, 4 Pole, 63A, DPX³ 160 MCCB
Features of DPX3 MCCB
- MCCB with Thermal Magnetic Release
- Current rating from 16A to 1250A
- Ics=100%Icu
- Four Optimum Frames
- Thermal Adjustable – 0.8 to 1In, Magnetic Adjustable – 5 to 10In
- Breaking Capacity – 16kA, 25kA, 36kA, 50kA, 70kA
- Option for In built or add on module for Earth Leakage Protection
- Adjustable sensitivity: 0.03 - 0.3 - 1 - 3A
- Adjustable tripping: 0 - 0.3 - 1 - 3s
-
Suitable for Isolation
-
Optional accessories like Rotary Handles, Motor Operators etc. are also available
- Application: For Overload & Short-Circuit Protection
-
DPX3 can also be used as an Automatic Transfer Switch (Source transfer S/W)
4200 93
Data sheet
- MCCB APPLICATION
- O/L & S/C protection
- MCCB MODEL
- DPX³ 160
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- THERMAL MAGNETIC BASED
- MCCB CURRENT RATING
- 63A
- MCCB/MPCB POLES
- 4 POLE
- MCCB/MCB BREAKING CAPACITY
- 36kA
