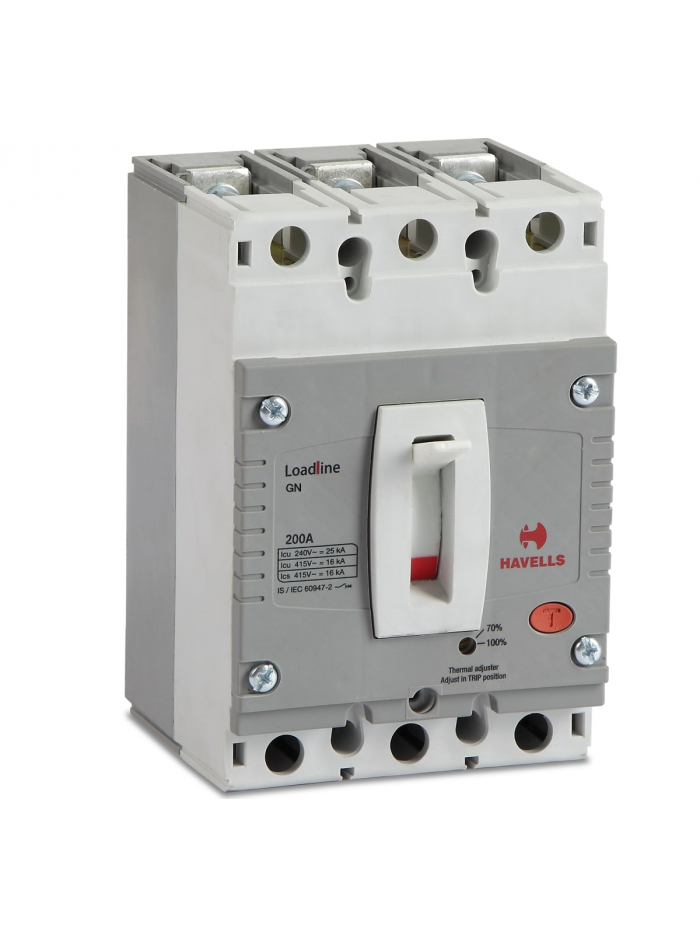

HAVELLS, 3 Pole, 125A, Loadline MCCB
Features of Loadline MCCB
- Conforms to IS/IEC:60947-2
- Range: 25A to 160A
- Different Current Ratings provide selection option depending on varied load conditions
- Ics = 75% of Icu
- Breaking Capacity Icu at 415V = 10kA
- Offered in different pole configurations based on system requirement
- Fixed Thermal & Fixed Magnetic Setting
- Overload Setting is Fixed and Short Circuit Setting is minimum 10 times of Rated Current
- Compact Size & Double Insulation
- In 4Pwsn Version, Neutral make first & break last for addressing Residual Current in the Circuit
- Provision of push to tip button
- Positive dolly position indication to check the ON/OFF status of the breaker
- Wide range of accessories available
IHLGNT0125
Data sheet
- RATED VOTAGE
- 415V AC
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- THERMAL MAGNETIC BASED
- MCCB FRAME
- GN
- MCCB CURRENT RATING
- 125A
- MCCB/MPCB POLES
- 3 POLE
- MCCB/MCB BREAKING CAPACITY
- 16kA
