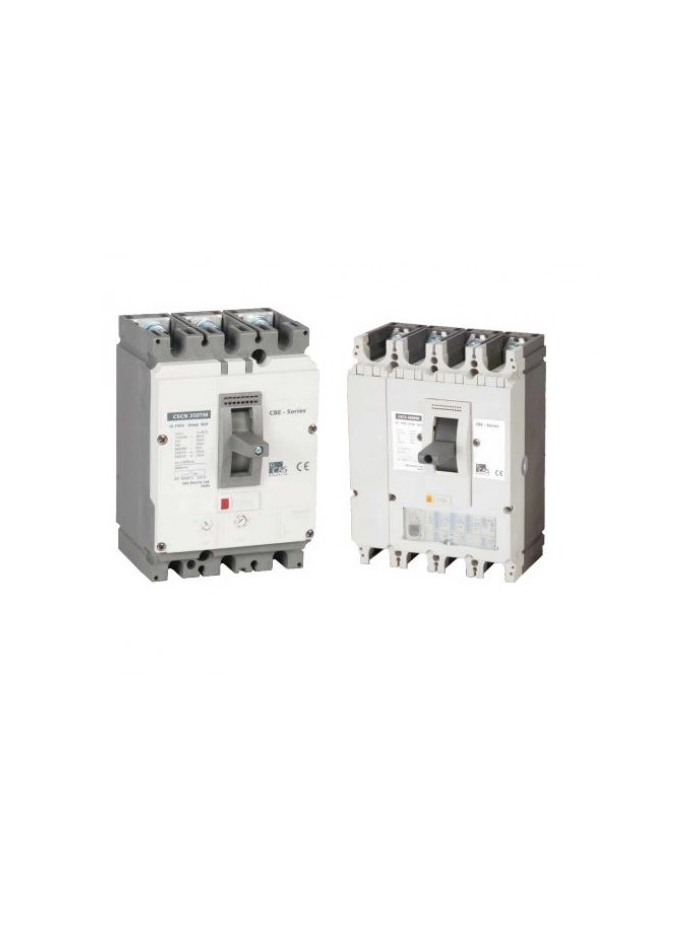

C&S, 3 Pole, 200A, ACE 2 MCCB
Features of ACE 2 MCCB
- Conforms to IS/IEC 60947-2
- Ics = 100% Icu
- Range 16A to 1250A
- Breaking Capacity: 36kA, 50kA & 70kA
- ATU (Thermal Magnetic) Release
- Adjustable Overload 80-100%
- Adjustable Short Circuit 5-10In
- Neutral Protection 50% to 100%
- Positive Isolation
- Trip free mechanism
- Double contact structure
- No Line-load Bias
- Wide range of internal & external accessories
- Standard packing includes spreader terminals, insulating phase barrier & hardware.
CSCS250TM2003P
Data sheet
- MCCB CONTROL VOLTAGE
- 415V AC
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- THERMAL MAGNETIC BASED
- MCCB FRAME
- FRAME 2
- MCCB CURRENT RATING
- 200A
- MCCB/MPCB POLES
- 3 POLE
- MCCB/MCB BREAKING CAPACITY
- 50kA
