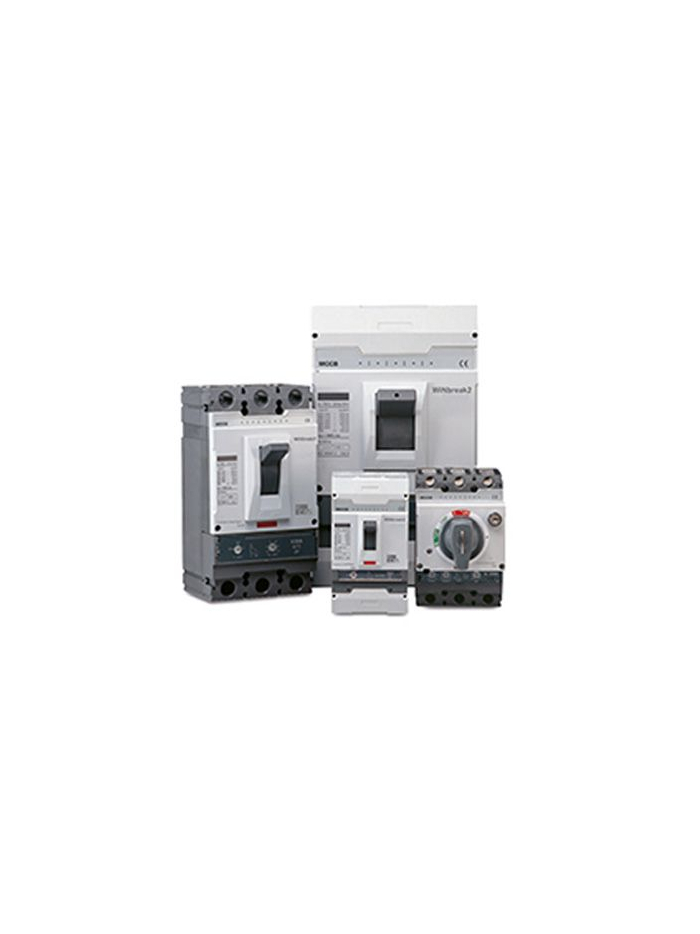

C&S, 3 Pole, 80A, WiNbreak2 MCCB
Features of WiNbreak2 MCCB
Conforms to IS/IEC 60947-2 Ics = 100% Icu Range: 16A to 1600 FMU (Thermal Magnetic) Release Adjustable Overload 80-100% Fixed Short Circuit 10In Positive Isolation Trip Free Mechanism Double contact structure Communication compatible No Line-load Bias Neutral with 100% rated current Tripping by pressure Current limiting Manual, Rotary or Motorized available Wide range of internal & external accessories Standard Packing includes spreader terminals, insulating phase barrier & hardware
Reference
CD100NFMU804P
Data sheet
MCCB CONTROL VOLTAGE
415V AC
COUNTRY OF ORIGIN
INDIA
MCCB PROTECTION TYPE
THERMAL MAGNETIC BASED
MCCB FRAME
FRAME 1
MCCB CURRENT RATING
80A
MCCB/MPCB POLES
4 POLE
MCCB/MCB BREAKING CAPACITY
50kA
Condition
New
