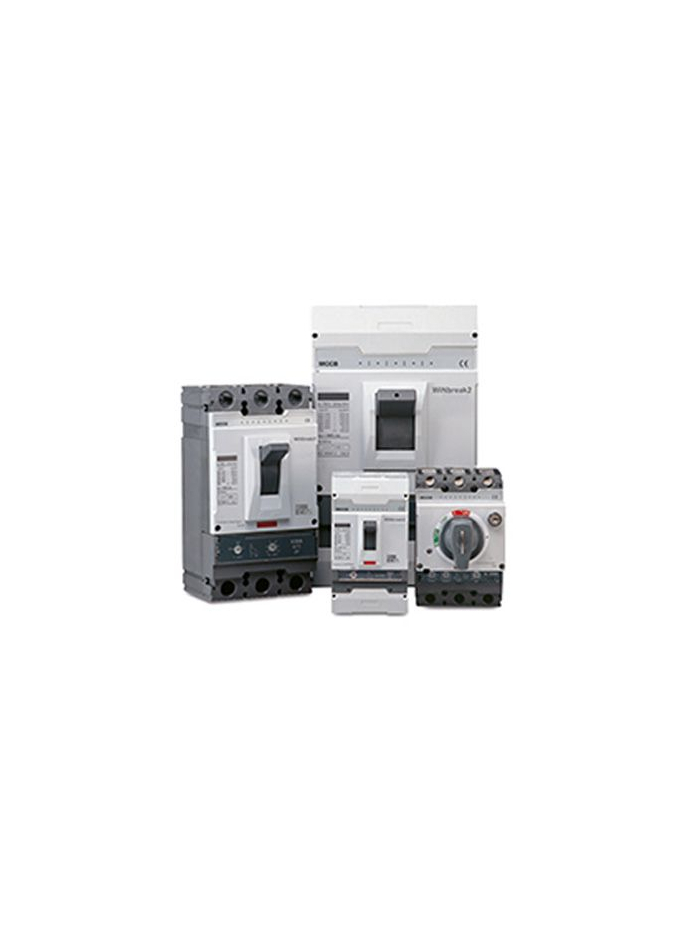

C&S, 3 Pole, 300A, WiNbreak2 MCCB
FMU (Thermal Magnetig} Release, Adjustable Overload 80-100%, Fixed short girguit 10 In.
Features of WiNbreak2 MCCB
- Conforms to IS/IEC 60947-2
- Ics = 100% Icu
- Range: 16A to 1600
- FMU (Thermal Magnetic) Release
- Adjustable Overload 80-100%
- Fixed Short Circuit 10In
- Positive Isolation
- Trip Free Mechanism
- Double contact structure
- Communication compatible
- No Line-load Bias
- Neutral with 100% rated current
- Tripping by pressure
- Current limiting
- Manual, Rotary or Motorized available
- Wide range of internal & external accessories
- Standard Packing includes spreader terminals, insulating phase barrier & hardware
CS400NFMU3003P
Data sheet
- MCCB CONTROL VOLTAGE
- 415V AC
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- THERMAL MAGNETIC BASED
- MCCB FRAME
- FRAME 3
- MCCB CURRENT RATING
- 300A
- MCCB/MPCB POLES
- 3 POLE
- MCCB/MCB BREAKING CAPACITY
- 65kA
Specific References
New
16 other products in the same category

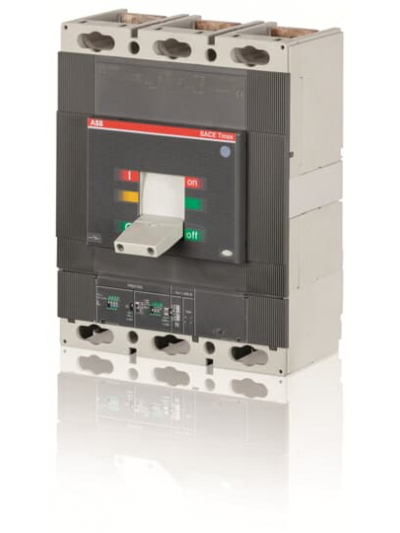

ABB, 3 Pole, 1000A, 70kA,...
