SIEMENS, 3 Pole / 4 Pole, 160A, SENTRON 3VT MCCB
Features of SENTRON 3VT MCCB
- Rated current - 100A to 1600A
- In 3 Pole / 4 Pole Version
- Microprocessor based Trip Unit (ETU) Trip unit

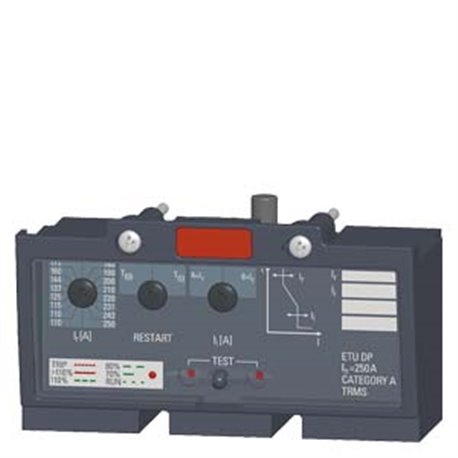

- Trip unit for system protection ETU DP, LI function
- Adjustable Overload & Adjustable Short Circuit Setting
- Under voltage & shunt release with multiple voltage settings
- Fixed mounted, plug-in and draw-out versions
3VT9216-6AC00
Data sheet
- MCCB APPLICATION
- MOTOR AND GENERATOR PROTECTION
- MCCB MODEL
- SENTRON 3VT
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- MICROPROCESSOR BASED
- MCCB FRAME
- 3VT2
- MCCB CURRENT RATING
- 160A
- MCCB TRIP UNIT
- ETU MP LI
- MCCB/MPCB POLES
- 3 POLE/ 4 POLE
Specific References
