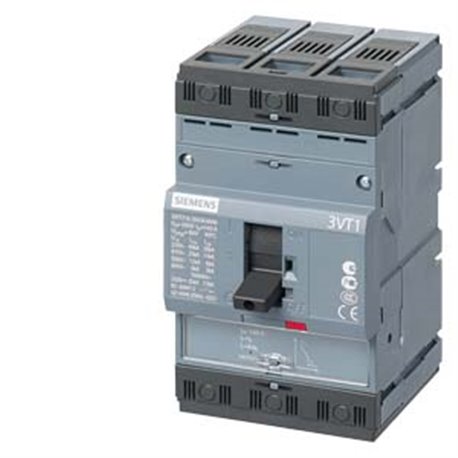

SIEMENS, 3 Pole, 32A, SENTRON 3VT1 MCCB
Features of SENTRON 3VT MCCB
- Rated current - 16A to 160A
- Breaking Capacity at 415VAC, 50Hz = 25kA
- Thermal Magnetic trip unit
- Adjustable Overload & Adjustable Short Circuit Setting for line protection
- Switch disconnector for complete range
- Special purpose trip unit for motor & generator protection
- Under voltage & shunt release with multiple voltage settings
- Fixed mounted, plug-in and draw-out versions
3VT1703-2DC36-0AA0
Data sheet
- MCCB APPLICATION
- LINE PROTECTION
- MCCB MODEL
- SENTRON 3VT1
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- THERMAL MAGNETIC BASED
- MCCB CURRENT RATING
- 32A
- MCCB/MPCB POLES
- 3 POLE
- MCCB/MCB BREAKING CAPACITY
- 25kA
Specific References
New
