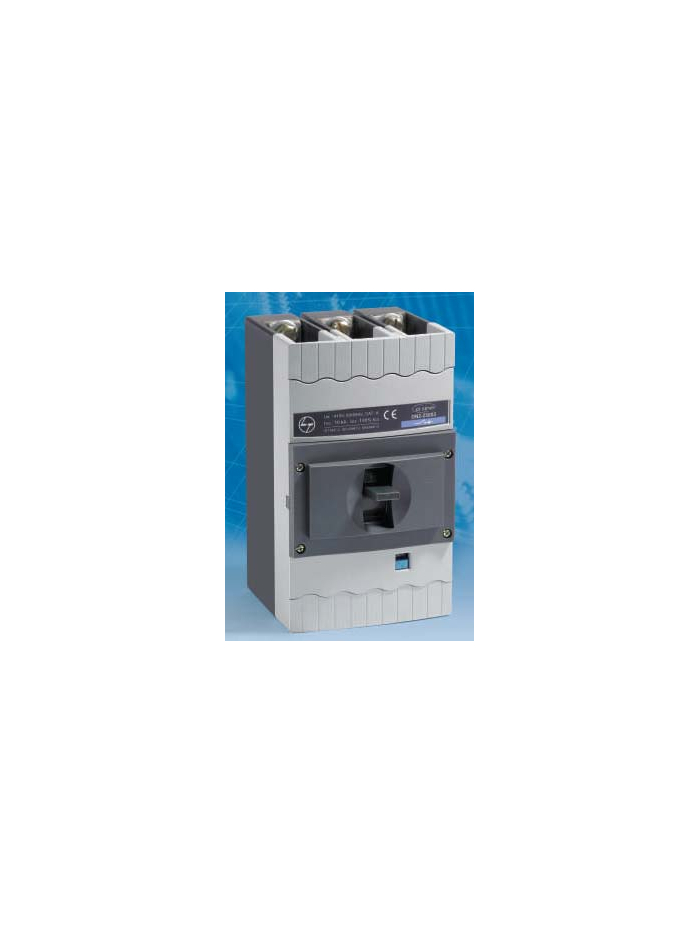

L&T, 3 Pole, 250-630A, DN3-400D MCCB
630A, DN3-630D, MICROPROCESSOR RELEASE, D SINE MCCB
- Conforms to IS/IEC 60947-2 & IEC 60947-2
- Adjustable Over Load from 0.4 - 1.0 x In
- Inbuilt ground fault protection from 10% - 50% of In
- Advanced Current, Voltage, Frequency & Power based protections
- Variable trip class at 1.5 Ir, 6 Ir & 7.2 Ir
- Panel mounted display available for advanced protections & metering
- For 3 phase 4 wire system
- External neutral CTs available
CM93005OOOOBG
Data sheet
- MCCB MODEL
- DN3-630D
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- MICROPROCESSOR BASED
- MCCB CURRENT RATING
- 630A
- MCCB TRIP UNIT
- MTX 3.0
- MCCB/MPCB POLES
- 3 POLE
- MCCB THERMAL/ MAGNETIC RELEASE RANGE
- 250-630A
- MCCB/MCB BREAKING CAPACITY
- 36kA
Specific References
