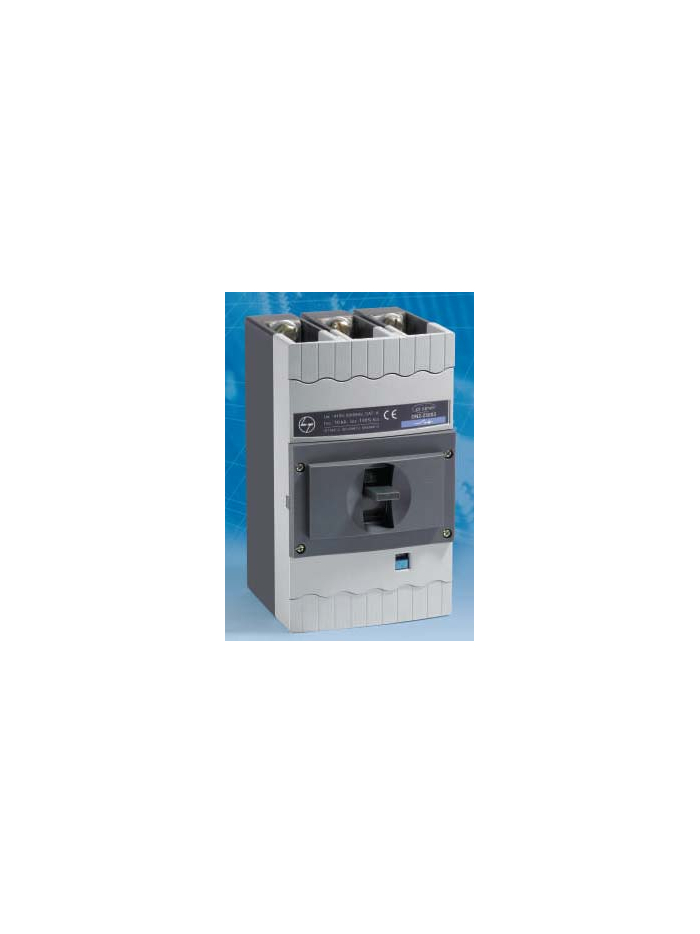

L&T, 3 Pole, 25-63A, DN2-250D MCCB
Conforms to IS/IEC 60947-2 & IEC 60947-2 Adjustable Over Load from 0.4 - 1.0 x In Inbuilt ground fault protection from 10% - 50% of In Advanced Current, Voltage, Frequency & Power based protections Variable trip class at 1.5 Ir, 6 Ir & 7.2 Ir Panel mounted display available for advanced protections & metering For 3 phase 4 wire system External neutral CTs available
Reference
CM92071OOOOBG
Data sheet
MCCB MODEL
DN2-250D
COUNTRY OF ORIGIN
INDIA
MCCB PROTECTION TYPE
MICROPROCESSOR BASED
MCCB CURRENT RATING
63A
MCCB TRIP UNIT
MTX 3.0
MCCB/MPCB POLES
3 POLE
MCCB THERMAL/ MAGNETIC RELEASE RANGE
25-63A
MCCB/MCB BREAKING CAPACITY
36kA
Condition
New
