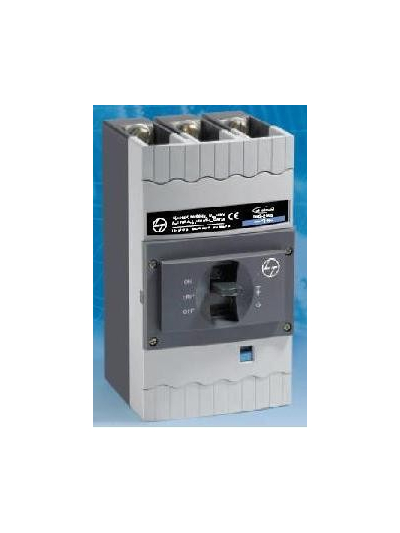

L&T, 4 Pole, 160-200A, DN2-250D MCCB
200A, DN2-250D, THERMAL MAGNETIC RELEASE, D SINE MCCB
Conforms to IS/IEC 60947-2 & IEC 60947-2
Ics = 100% Icu*
Suitable for Isolation
Adjustable Over Load setting: 0.8 - 1.0 x In
Adjustable Short Circuit setting: 6 - 10 x In**
Manual, Rotary or Motorised versions available @
Wide Range of snap fit Internal and External Accessories
CM92109OON1OG
Data sheet
- MCCB MODEL
- DN2-250D
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- THERMAL MAGNETIC BASED
- MCCB CURRENT RATING
- 200A
- MCCB/MPCB POLES
- 4 POLE
- MCCB THERMAL/ MAGNETIC RELEASE RANGE
- 160-200A
- MCCB/MCB BREAKING CAPACITY
- 36kA
