L&T, 3 Pole, 125-160A, DN2-250S MCCB
160A, DN2-250S, THERMAL MAGNETIC RELEASE, D SINE MCCB
Conforms to IS/IEC 60947-2 & IEC 60947-2
Ics = 100% Icu*
Suitable for Isolation
Adjustable Over Load setting: 0.8 - 1.0 x In
Adjustable Short Circuit setting: 6 - 10 x In**
Manual, Rotary or Motorised versions available @
Wide Range of snap fit Internal and External Accessories
CM92002OOM1OG
Data sheet
- MCCB MODEL
- DN2-250S
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- THERMAL MAGNETIC BASED
- MCCB CURRENT RATING
- 160A
- MCCB/MPCB POLES
- 3 POLE
- MCCB THERMAL/ MAGNETIC RELEASE RANGE
- 125-160A
- MCCB/MCB BREAKING CAPACITY
- 70kA
Specific References
New
16 other products in the same category
ABB, 3 Pole, 25A, 50kA, XT2...
Breaking capacity at 415V AC, Ics (Icu) - 100%, L = 0.40 - 1 of In, S = 1 - 10 of In, I = 1 - 10 of In.

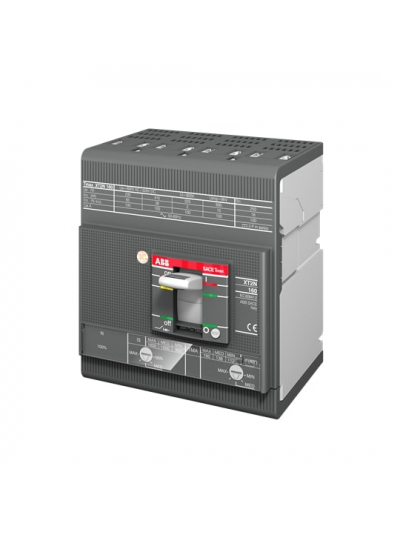

ABB, 4 Pole, 16A, 50kA, XT2...
