L&T, 4 Pole, 100-125A, DN1-250C MCCB
125A, DN1-250C, THERMAL MAGNETIC RELEASE, D SINE MCCB FOR ISOLATION
Conforms to IS/IEC 60947-2 & IEC 60947-2
Ics = 100% Icu*
Suitable for Isolation
Adjustable Over Load setting: 0.8 - 1.0 x In
Adjustable Short Circuit setting: 6 - 10 x In**
Manual, Rotary or Motorised versions available @
Wide Range of snap fit Internal and External Accessories
CM90642OOLO
Data sheet
- MCCB APPLICATION
- ISOLATION
- MCCB MODEL
- DN1- 250C
- COUNTRY OF ORIGIN
- INDIA
- MCCB PROTECTION TYPE
- THERMAL MAGNETIC BASED
- MCCB CURRENT RATING
- 125A
- MCCB/MPCB POLES
- 4 POLE
- MCCB THERMAL/ MAGNETIC RELEASE RANGE
- 100-125A
- MCCB/MCB BREAKING CAPACITY
- 25kA
Specific References
New
16 other products in the same category
ABB, 3 Pole, 1600A, 50kA,...
Breaking Capacity at 415V AC, Ics (Icu) - 100%, L = 0.4 - 1 of In, S = 1 - 10 of In, I = 1 - 12 of In.
C&S, 3 Pole, 100A, ACE 2 MCCB
FMU (Thermal Magnetic) Release, Adjustable Overload 80-100%, Fixed short circuit 10In.
C&S, 1 Pole, 50A, WiNbreak1...
FTM (Thermal Magnetic) Release, Fixed Overload, Fixed short circuit .
ABB, 4 Pole, 100A, 70kA,...
Breaking capacity at 415V AC, Ics (Icu) - 100%, L = 0.40 - 1 of In, S = 1 - 10 of In, I = 1 - 10 of In.

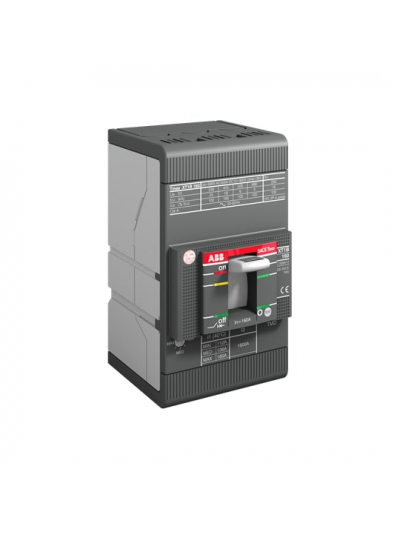

ABB, 3 Pole, 16A, 18kA, XT1...
