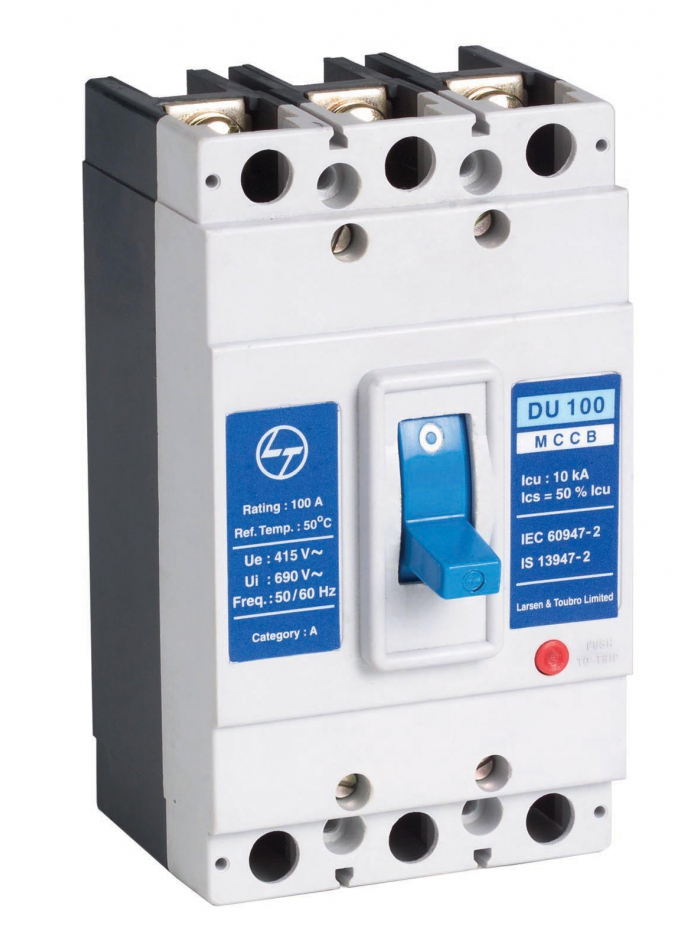

L&T, 3 Pole, 16-20A, DU 100D MCCB

20A, DU 100D, THERMAL MAGNETIC RELEASE, DU MCCB

Advantages of DU MCCB

  • Compact size
  • Current Limiting Type MCCB : The unique speed contact system with current limiting feature accelerates the opening of contacts during short circuit, resulting in very low let-throug
  • MCCB Mechanism: Quick make, quick break & trip free mechanism
  • Phase barriers supplied along with MCCBs to enhance the clearance between the phases
  • Double Insulation
  • Higher Mechanical & Electrical  Life
  • Easy ON/OFF/RESET operations
  • Knob designed for better grip
  • Optional DIN rail mounting available

DU MCCBS

Features

  • Confirms to IEC60947-2,EN60947-2,IS/IEC60947-2
  • Adjustable Overload Setting  0.8- 1.0x in
  • Internal Accessories:
    • Auxiliary Contact
    • Trip Alarm Contact
    • Auxiliary+Trip Alarm Contact
    • Shunt Release
    • Under Voltage Release
  • External Accessories:
    • Direct & Extended Rotary Handle
    • Spreader Terminals
    • Key lock for Interlocking
    • SS Enclosure
CM90517OOCO

Data sheet

MCCB MODEL
DU 100D
COUNTRY OF ORIGIN
INDIA
MCCB PROTECTION TYPE
THERMAL MAGNETIC BASED
MCCB CURRENT RATING
20A
MCCB/MPCB POLES
3 POLE
MCCB THERMAL/ MAGNETIC RELEASE RANGE
16-20A
MCCB/MCB BREAKING CAPACITY
18kA
