HRC Fuses

• HRC Fuse Link range covers ratings from 2A to 800A.

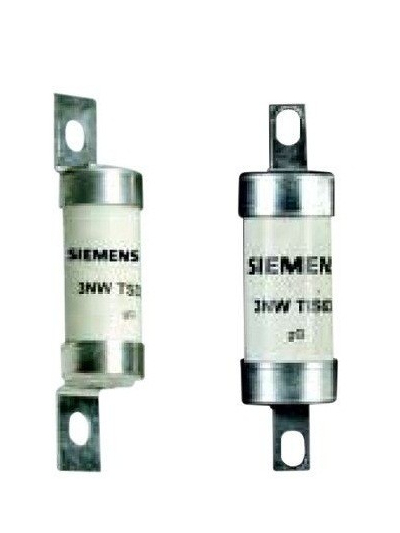

• HRC Fuse-link range is available in 14x51 Cylindrical, DIN and BS type
• High breaking capacity: 80kA for Cylindrical & BS Type & 100kA for DIN Type
• The complete range conforms to IS 13703 (Part 2) / IEC 60269-2 standards
• Let-through energy value of fuse is extremely low; it leads to optimal selectivity for the cable size & downstream protection devices. Low power loss also leaded to low running cost & minimum heating.
• Fuse blown indication is available through a red pop-up indicator
• Suitable fuse base & fuse pulling handle are also available

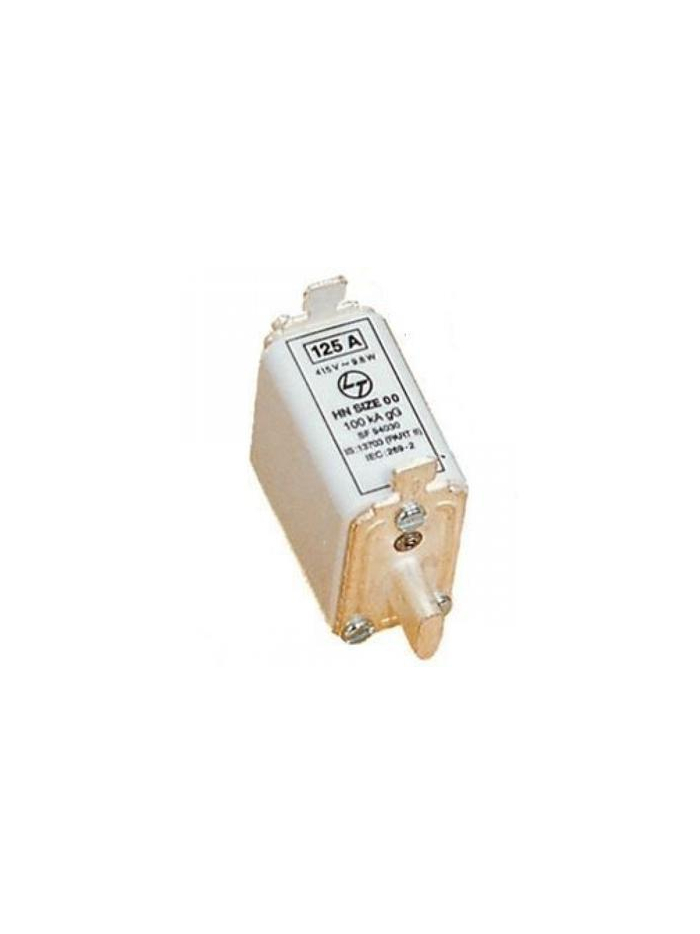

Features of HRC DIN Type Fuse Links - Type HN

• DIN Type Fuse Links - Type HN
• Range: 63A to 800A, 415V AC
• High breaking capacity: 100kA
• Size: 000, 00 & 0 to 3
