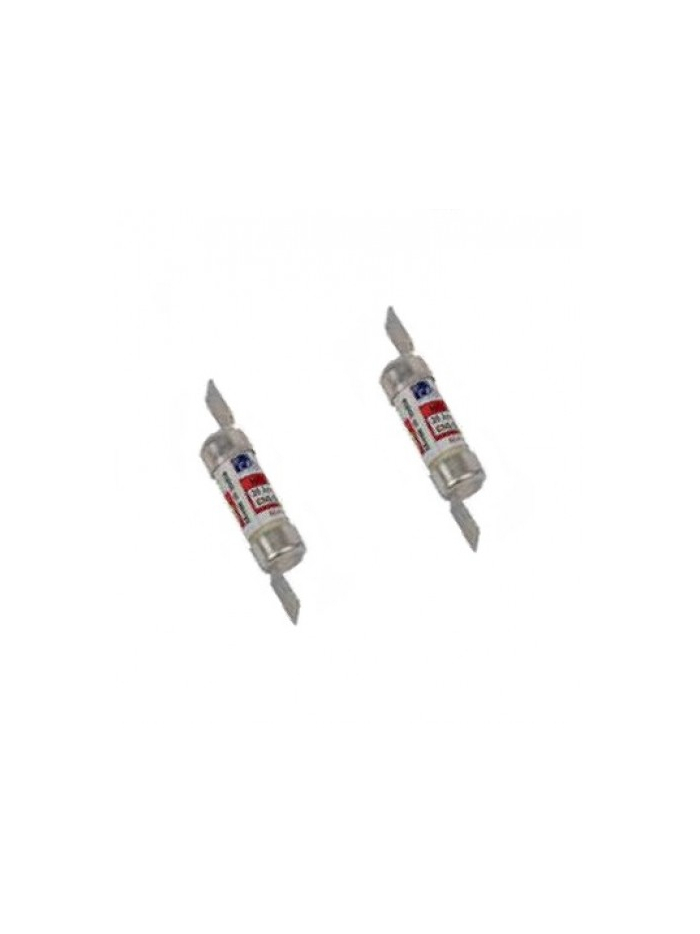

C&S, 16A, CNS (Off set) Clip in Type, BOLTED Type HRC Fuse Link
HRC Fuse Links & Fuse Bases
- Fuse Links Type- DIN, Bolted & Cylindrical type
- Short circuit capacity at >80 kA, 415/500V AC 50 Hz
- Positive indication of the operation with red colour pop.
- Low power loss not only saves energy but also ensures cool running and longer life of equipment.
- Low cut-off current reduces electromagnetic stresses and damage to circuit & equipment.
- Low I2t let through energy reduces thermal stresses, fire risks and damage to the equipments.
- Ideally suitable for back up protection to motor starters against short circuit faults.
Features of HRC Bolted Type Fuse Links
- DIN Type Fuse Link (ISI mark)
- Conforms to IS 13703-Part 2
- Conforms to IEC 60269-Part 2
- High breaking capacity: 80kA
- Range of Fuse Link-Bolted Type: 2 to 800A; OFF set tag & central tag type
CNS16
Data sheet
- FUSE BREAKING CAPACITY
- 80kA
- LT FUSE VOLTAGE
- 415V
- FUSE SIZE
- F1
- FUSE CURRENT
- 16A
- FUSE TYPE
- BOLTED TYPE
- COUNTRY OF ORIGIN
- INDIA
