HRC Fuse Links & Fuse Bases

• Fuse Links Type- DIN & Bolted type
• Short circuit capacity at >80 kA, 415/500V AC 50 Hz
• Positive indication of the operation with red colour pop.
• Low power loss not only saves energy but also ensures cool running and longer life of equipment.
• Low cut-off current reduces electromagnetic stresses and damage to circuit & equipment.
• Low I2t let through energy reduces thermal stresses, fire risks and damage to the equipments.
• Ideally suitable for back up protection to motor starters against short circuit faults.

Features of HRC DIN Type Fuse Links

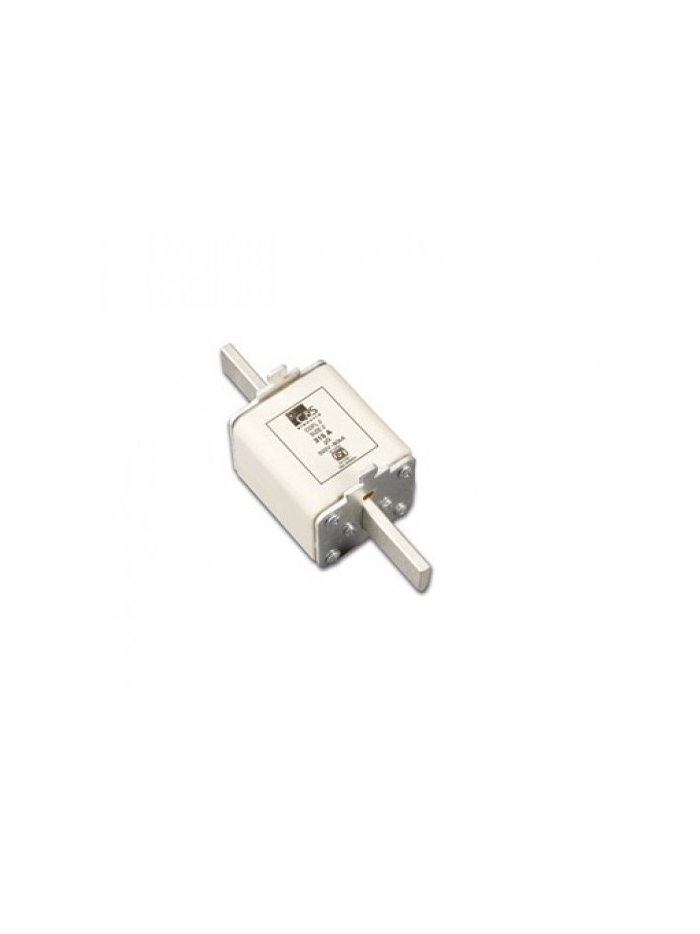

• DIN Type Fuse Link (ISI mark)
• Conforms to IS 13703-Part 2
• Conforms to IEC 60269-Part 2
• High breaking capacity: 80kA
• Range of Fuse Link-DIN Type: 40A to 400A
• Fuse Base : Size 0: 40 to160A, Size1: 32 to 250A, Size2: 100 to 400A
