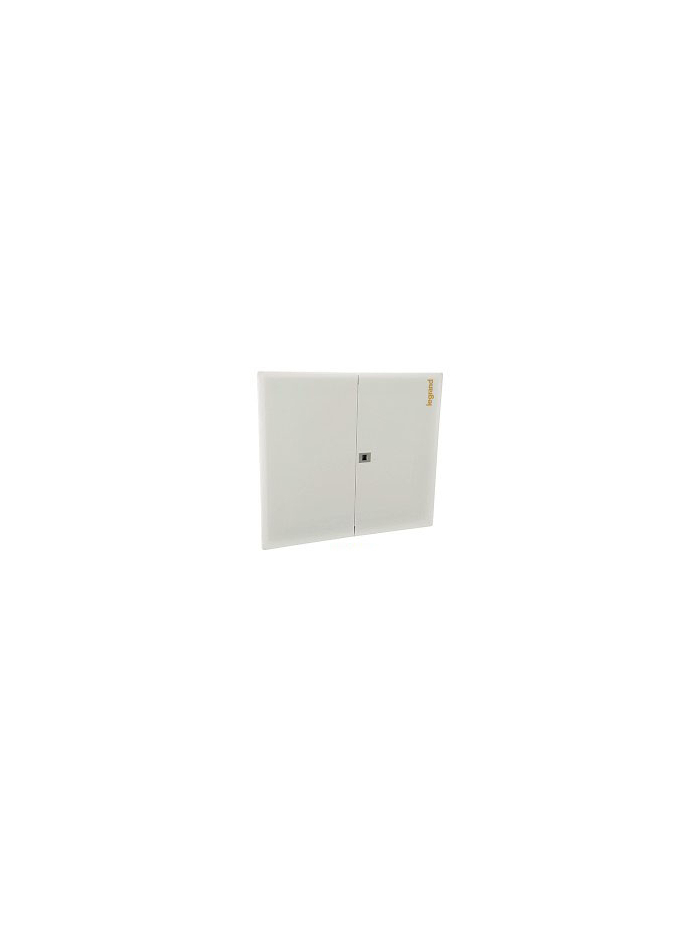

Legrand, IP43, Metal Door, 8 Way, Ekinox³ TPN DB-7 segment DB for DX³ MCB, Isolator, RCCB and RCBO
  • Legrand, IP43, Metal Door, 8 Way, Ekinox³ TPN DB-7 segment DB for DX³ MCB, Isolator, RCCB and RCBO

Legrand, IP43, Metal Door, 8 Way, Ekinox³ TPN DB-7 segment DB for DX³ MCB, Isolator, RCCB and RCBO

Features of Ekinox³ TPN DB - 7 segment DB's

  • Ekinox³ TPN DB - 7 segment DB's for DX3 MCB, Isolator, RCCB & RCBO
  • As per IEC 61439-3
  • Separate compartment for incomer, sub-incomer & outgoing devices
  • Suitable for Flush Mounting and Surface Mounting
  • With 100A Copper Busbar for each phase
  • With Neutral bar, Earthbar and Cable ties for Cable management
  • Fully insulated busbar & shrouded Neutral bars
  • With provision for FP MCB/Isolator/RCCB/RCBO as incomer, DP RCCB/RCBO as sub incomer and SP MCB's as outgoing
  • Supplied with wire set
  • DB with phase segmentation and seperation between incomer and outgoings.
5078 87

Data sheet

DB TYPE
TPN
DOOR TYPE
METAL DOOR
WAY
8
TOTAL MODULES
8+12+24
IP PROTECTION
IP43
COUNTRY OF ORIGIN
INDIA
