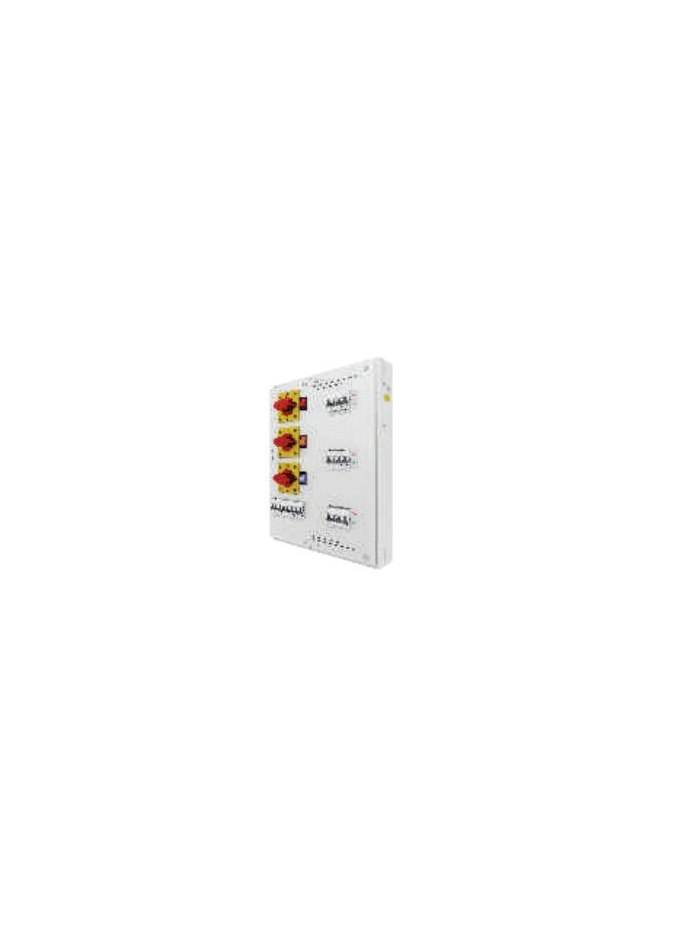

L&T, IP30-Single Door, 6 Way, TPN Phase Selector DB

Conforms to IS 8623-1 & 3, IEC 61439-1 & 3, IK 08-for single door DBs, IK 09-for double door DBs, Available in CRCA sheet steel, RAL9003, powder coated, Ready to use DBs - Provided with 100A insulated phase bus-bar, neutral bar/s with shroud/s, earth bar/s, sticking saddles, cement spill protector, color-coded interconnecting wire set, cable ties, blanking plates and circuit identification label With provision for DP MCB/Isolator/RCCB/RCBO as incomer and SP MCBs as outgoings.
DBPSR006SD

Data sheet

DB TYPE
TPN PHASE SELECTOR
DOOR TYPE
SINGLE DOOR
INCOMER MODULES
8
OUTGOING MODULES
6+6+6
WAY
6
IP PROTECTION
IP30
COUNTRY OF ORIGIN
INDIA
