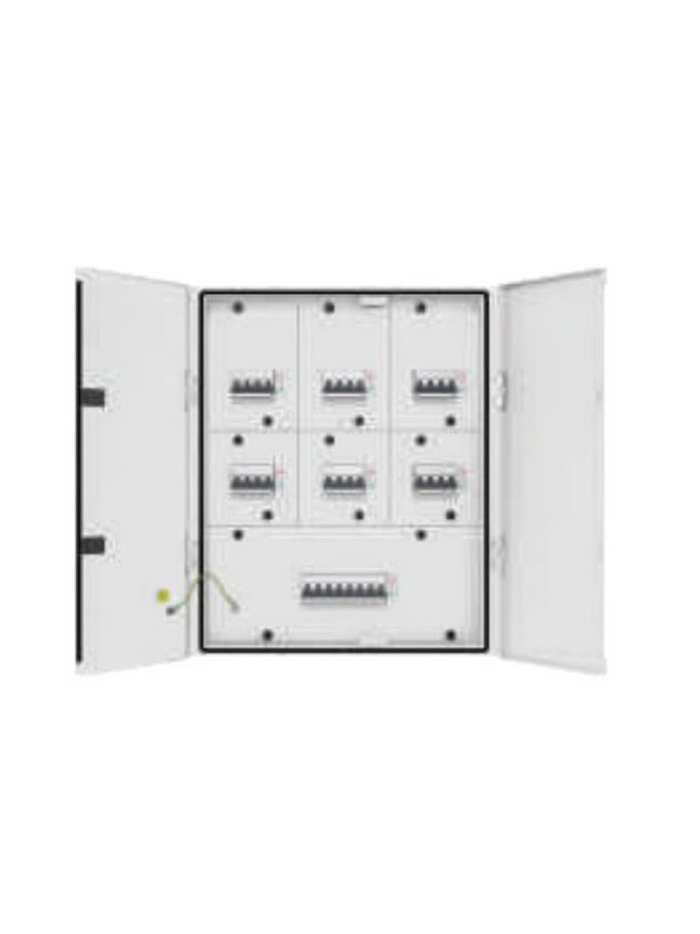

L&T, IP43-Metal Door, 4 Way, Modular Incomer, TPN Phase Segregated DB
Conforms to IS 8623-1 & 3, IEC 61439-1 & 3, IK 08-for single door DBs, IK 09-for double door DBs, Available in CRCA sheet steel, RAL9003, powder coated, Ready to use DBs - Provided with 100A insulated phase bus-bar, neutral bar/s with shroud/s, earth bar/s, sticking saddles, cement spill protector, color-coded interconnecting wire set, cable ties, blanking plates and circuit identification label With provision for DP MCB/Isolator/RCCB/RCBO as incomer and SP MCBs as outgoings.
DBPSG004DD
Data sheet
- DB TYPE
- TPN PHASE SEGREGATED WITH MODULAR INCOMER
- DOOR TYPE
- METAL DOOR
- INCOMER MODULES
- 8
- SUB INCOMER MODULES
- 4+4+4
- OUTGOING MODULES
- 4+4+4
- WAY
- 4
- IP PROTECTION
- IP43
- COUNTRY OF ORIGIN
- INDIA
