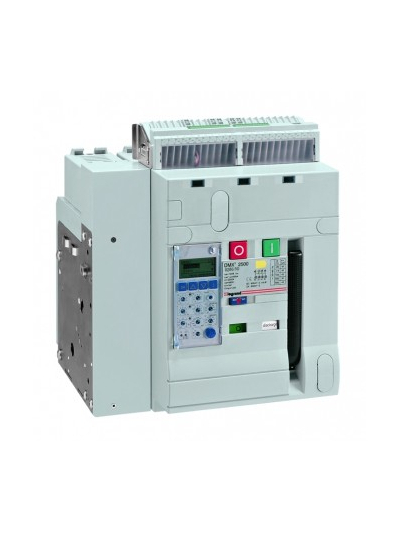

Legrand, 3 Pole, 1250A, FIXED DMX SP 2500 ACB SD

Features of DMX - Fixed Version ACB SD

  • Switch Disconnector (Trip Free Switches)
  • Range – 630A to 2500A
  • Single Frame Size
  • Breaking Capacity Icu=Ics=Icw(1sec) = 50kA
  • Compact Dimensions
  • Advanced Self Powered Electronic Protection Units
  • Options of LSI & LSIg Protections
  • L :  Ir  – 0.4 to 1 In,  tr – 5 to 30 sec
  • S : Isd – 1.5 to 10 Ir, tsd – 0.1 to 1 sec
  • I  : Ii – 2 to 15 In
  • G – 0.2 to 1 In, tg – 0.1 to 1 sec
  • Neutral Overload Protection - OFF-50 %-100 %
  • In Built Temperature Protection
  • Rotatable Terminals for Horizontal/Vertical Orientation
  • Fast Operation
  • Options to install various safety interlock
6695 51

Data sheet

ACB TRIP UNIT
LSI, LSIg
COUNTRY OF ORIGIN
INDIA
ACB BREAKING CAPACITY
50kA
ACB POLES
3 POLE
ACB PROTECTION TYPE
MICROPROCESSOR BASED
ACB RATING
1250A
