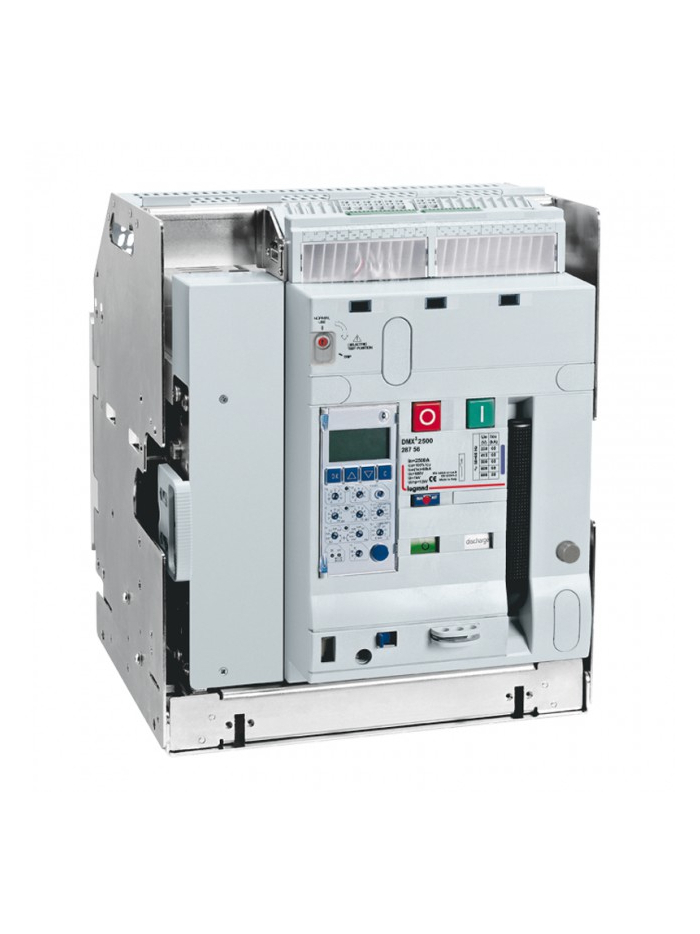

Legrand, 3 Pole, 2500A, DRAWOUT DMX³-N 2500 ACB
Features of DMX3 - Draw-out Version ACB
- Range – 630A to 6300A
- Three Optimum Frame Sizes
- Breaking Capacities of 50kA, 65kA & 100kA
- Advanced Self Powered Electronic Protection Units
- Options for LSI and LSIg Trip Units
- L : Ir – 0.4 to 1 In, tr – 5 to 30 sec
- S : Isd – 1.5 to 10 Ir, tsd – 0.1 to 1 sec
- I : Ii – 2 to 15 In
- G : 0.2 to 1 In, tg – 0.1 to 1 sec
- Options of LCD and Touch Screen Multi Colour Displays
- Neutral Overload Protection – OFF-50 %-100 %
- Communication Ready
- In Built Temperature Protection
- Rotatable Terminals for Horizontal/Vertical Orientation
- Fast Operation
- Options to install various safety interlock
- Internal Battery for Trip Units
- Individual fault diagnosis
- Individual Fault Counter & Historical Trip Record
- 6 Programmable Digital Relay Contacts with Time Delay Changeover
- Option to Measure Current, Voltage, Frequency, Power, Energy, Power Factor and internal battery voltage
- Advanced Functions of Logical Selectivity, Reverse Power, Current Unbalance, Overvoltage, Undervoltage, Voltage Unbalance, Under Frequency, Over Frequency & Phase Reversal
0287 26
Data sheet
- ACB TRIP UNIT
- LSI, LSIg
- ACB FRAME SIZE
- FRAME-I
- COUNTRY OF ORIGIN
- INDIA
- ACB BREAKING CAPACITY
- 50kA
- ACB POLES
- 3 POLE
- ACB PROTECTION TYPE
- MICROPROCESSOR BASED
- ACB RATING
- 2500A
