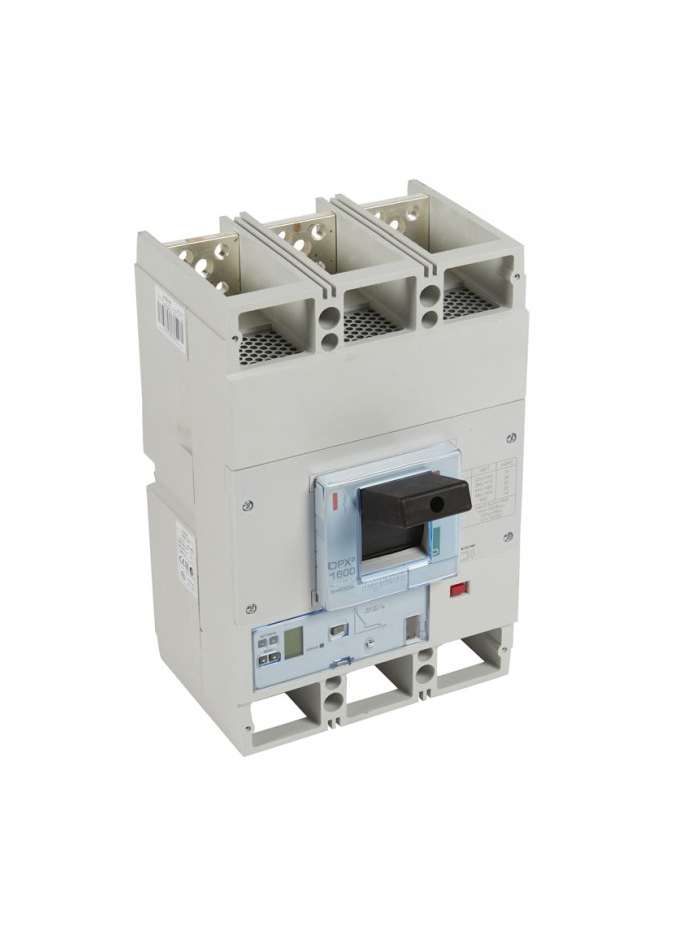

Legrand, 3 Pole, 1250A, DPX³ 1600 MCCB
Features of DPX3 MCCB
- MCCB with Electronic S2 (LSI) & Energy Metering Protection Unit
- Range: 40A – 1600A
- Three Optimum Frames
- Breaking Capacity – 25kA, 36kA, 50kA, 70kA
- Protection against overloads: lr adjustable from 0.4 to 1 x ln, tr adjustable from 3 to 30s
- Protection against short circuits: lsd adjustable from 1.5 to 10 x lr, tsd adjustable from 0 to 0.5s
- Inbuilt Instantaneous Protection: Ii – Fixed
- Option for In built or add on module for Earth Leakage Protection
- Adjustable sensitivity: 0.03 - 0.3 - 1 - 3A
- Adjustable tripping: 0 - 0.3 - 1 - 3s
- Integrated energy metering with accuracy class 2
- Measure for currents, voltage, frequency, power, energy and harmonics
- Internal Battery with battery measure function
- Communication Ready via COMM Port
- Logical Selectivity Ready (Zone Selective Interlocking)
- In Built USB Port for Software Diagnosis
- Suitable for Isolation
- DPX3 can also be used as an Automatic Transfer Switch (Source transfer S/W) Ics = 100% Icu
4223 74
ডাটা সিট
- MCCB MODEL
- COUNTRY OF ORIGIN
- MCCB PROTECTION TYPE
- MCCB CURRENT RATING
- MCCB TRIP UNIT
- MCCB/MPCB POLES
- MCCB/MCB BREAKING CAPACITY
Specific References
নতুন
