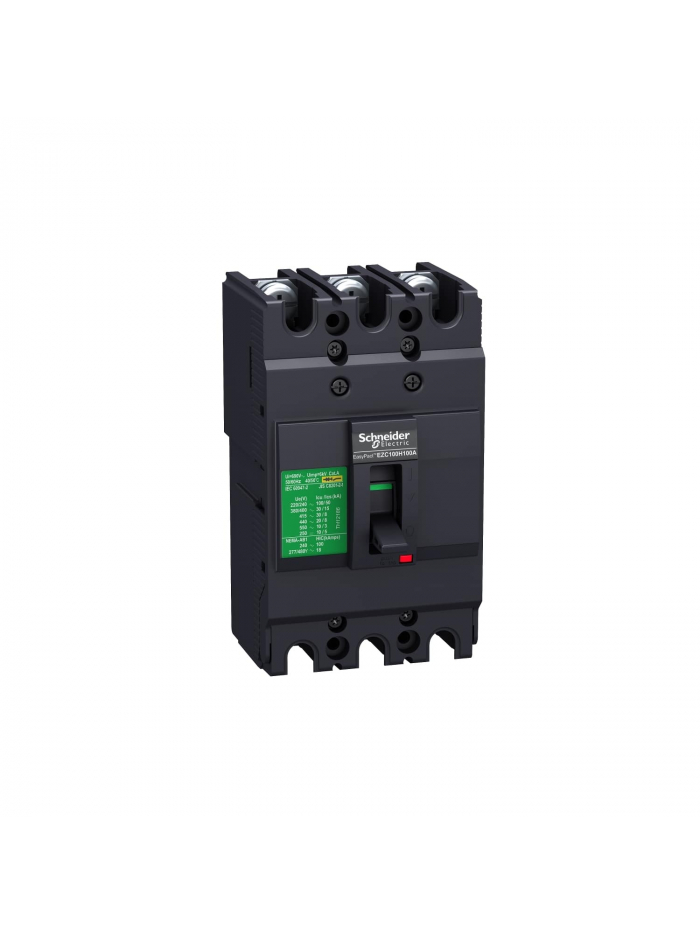

SCHNEIDER, 3 Pole, 32A, EasyPact EZC MCCB
Features of EasyPact EZC MCCB
Compliance to RoHS (Restriction of Hazardous Substances) for environment safety
MCCB for Distribution Network
Breaking Capacity upto 50kA at 415V AC
Available in 1 Pole, 2 Pole, 3 Pole & 4 Pole Version
EZC AC version is suitable for DC application upto 250V DC (15A to 250A breaking capacity upto 30kA)
Built in Earth leakage version 63A to 250A at Icu 63kA
MCCB with Fixed Thermal Magnetic Trip Unit
Suitable for EasyPact Busbar Systems
প্রসঙ্গ
EZC100F3032
ডাটা সিট
MCCB APPLICATION
RATED VOTAGE
DC BREAKING CAPACITY
DC VOLTAGE
MCCB MODEL
COUNTRY OF ORIGIN
MCCB PROTECTION TYPE
MCCB CURRENT RATING
MCCB/MPCB POLES
MCCB/MCB BREAKING CAPACITY
অবস্থা
নতুন
