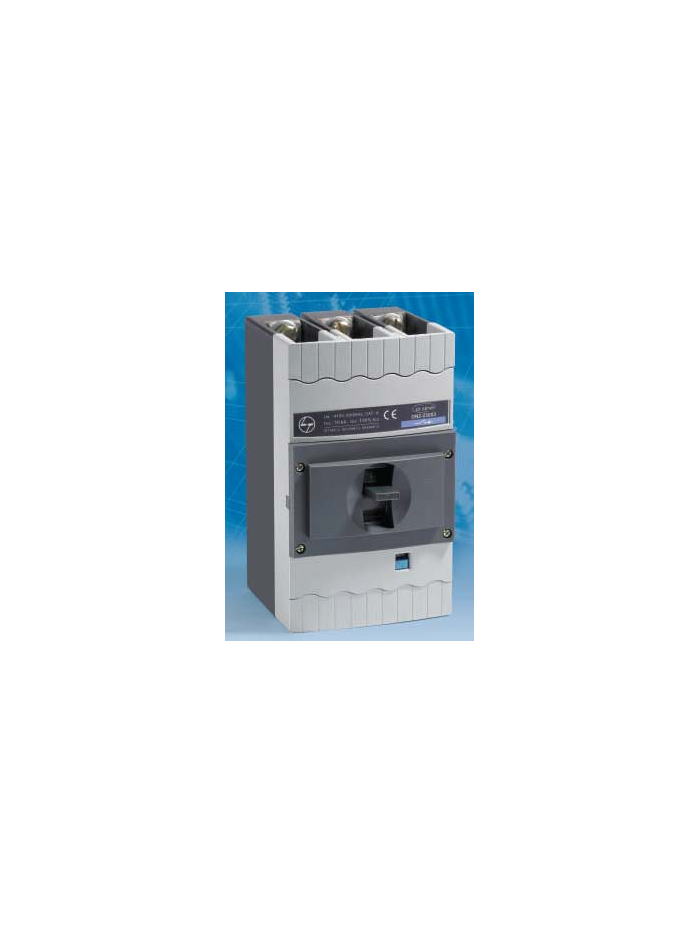

L&T, 3 Pole, 16-40A, DN2-250D MCCB
40A, DN2-250D, MICROPROCESSOR RELEASE, D SINE MCCB
- Conforms to IS/IEC 60947-2 & IEC 60947-2
- Range: 40A to 1250A, 3P & 4P
- Choice of 36kA / 50kA / 70kA breaking capacities
- Ics = 100% Icu
- Suitable for Isolation
- Adjustable Over Load from 0.4 - 1.0 x In
- Adjustable Short Circuit from 1.5 - 8 x Ir with selectable time delay
- Instantaneous protection with fine settings
- Inbuilt ground fault protection from 10% - 50% of In
- Adjustable neutral overload protection available : 50% to 150% of Ir
- Advanced Current, Voltage, Frequency & Power based protections
- Other Protections like Maximum Demand, Phase Sequence, THD etc.
- Comprehensive Current, Power, Energy, PF, MD, THD metering
- Provision of Thermal Memory : ON/OFF
- Variable trip class at 1.5 Ir,6 Ir & 7.2 Ir
- Front LED indication of Over Load (Ready, Over load pre-alarm & Overload)
- Panel mounted display available for advanced protections & metering
- Communication capable release
- Manual, Rotary or Motorised versions available @
- For 3 phase 4 wire system, External neutral CTs available for 3P MCCBs
- Wide Range of snap fit Internal and External Accessories
CM92063OOOOBG
ডাটা সিট
- MCCB MODEL
- COUNTRY OF ORIGIN
- MCCB PROTECTION TYPE
- MCCB CURRENT RATING
- MCCB TRIP UNIT
- MCCB/MPCB POLES
- MCCB THERMAL/ MAGNETIC RELEASE RANGE
- MCCB/MCB BREAKING CAPACITY
Specific References
নতুন
